E+H Water Analysis Product Overview
Endress+Hauser (E+H) is a globally leading supplier of industrial process measurement instruments. Its water analysis product line covers key water quality parameters such as pH, ORP, conductivity, dissolved oxygen, residual chlorine, turbidity, COD, ammonia nitrogen, TP, and TN. These products are widely used in municipal wastewater treatment, drinking water monitoring, power, chemical, pharmaceutical, and food and beverage industries. E+H water analysis instruments are renowned for their high precision, stability, and intelligence, meeting diverse needs from laboratory to on-site online monitoring.
pH and ORP Measurement

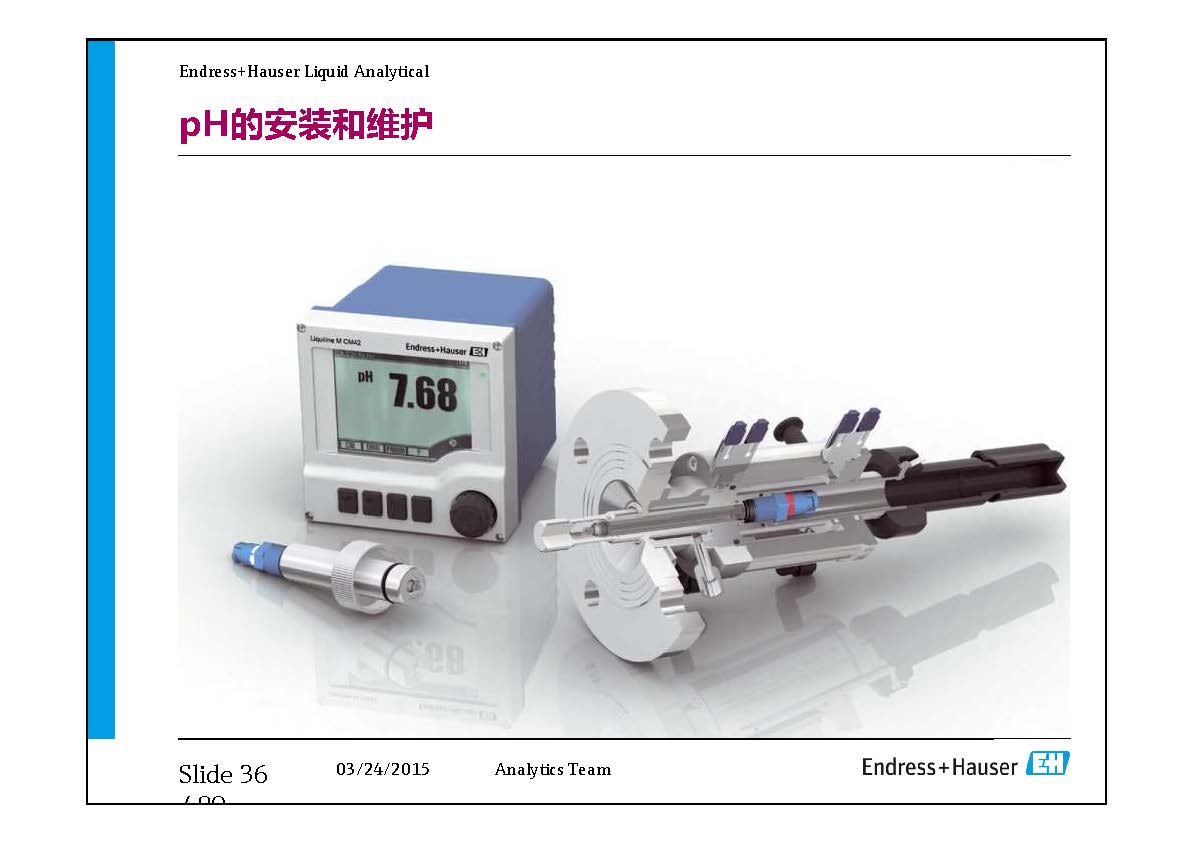

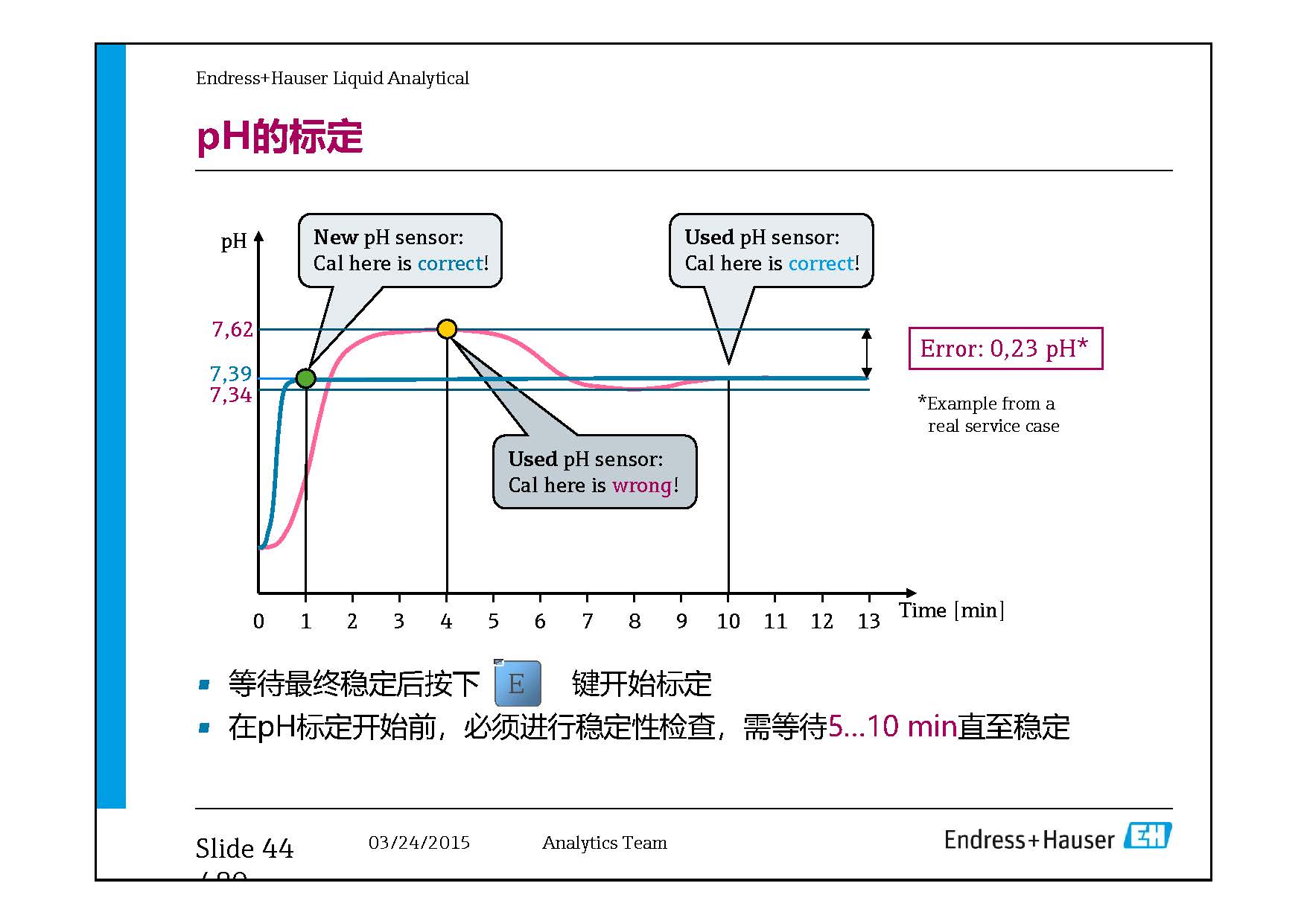

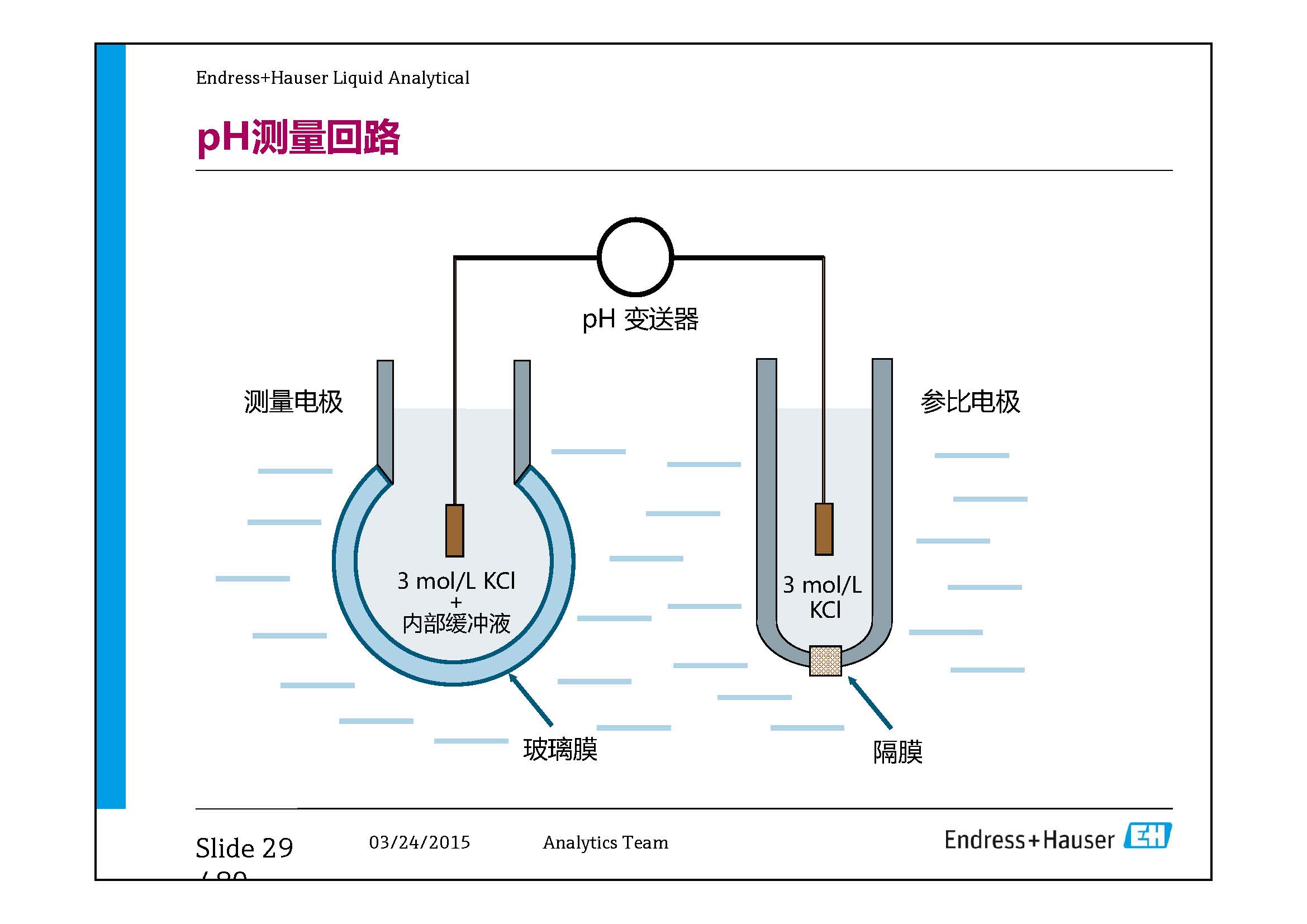

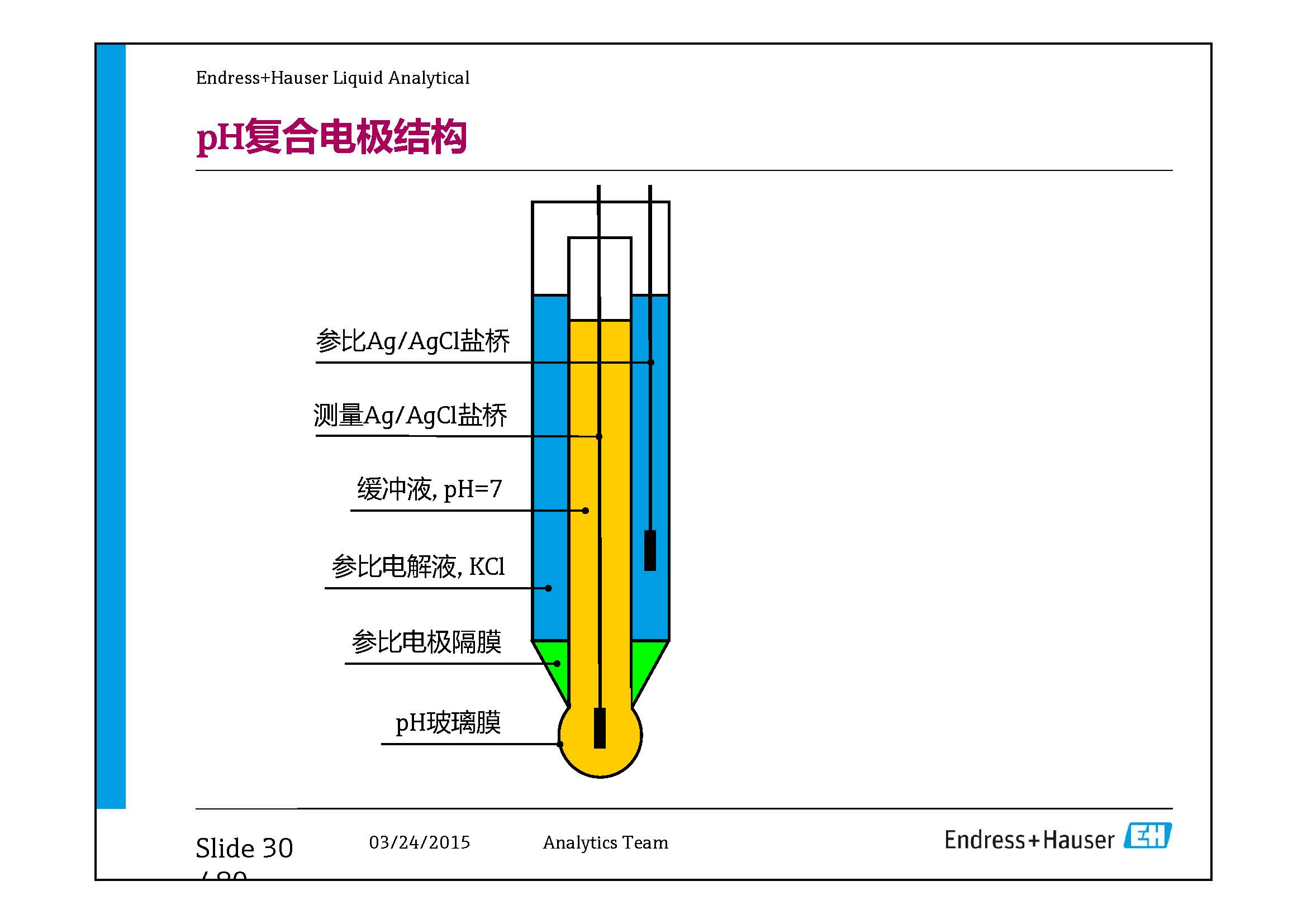

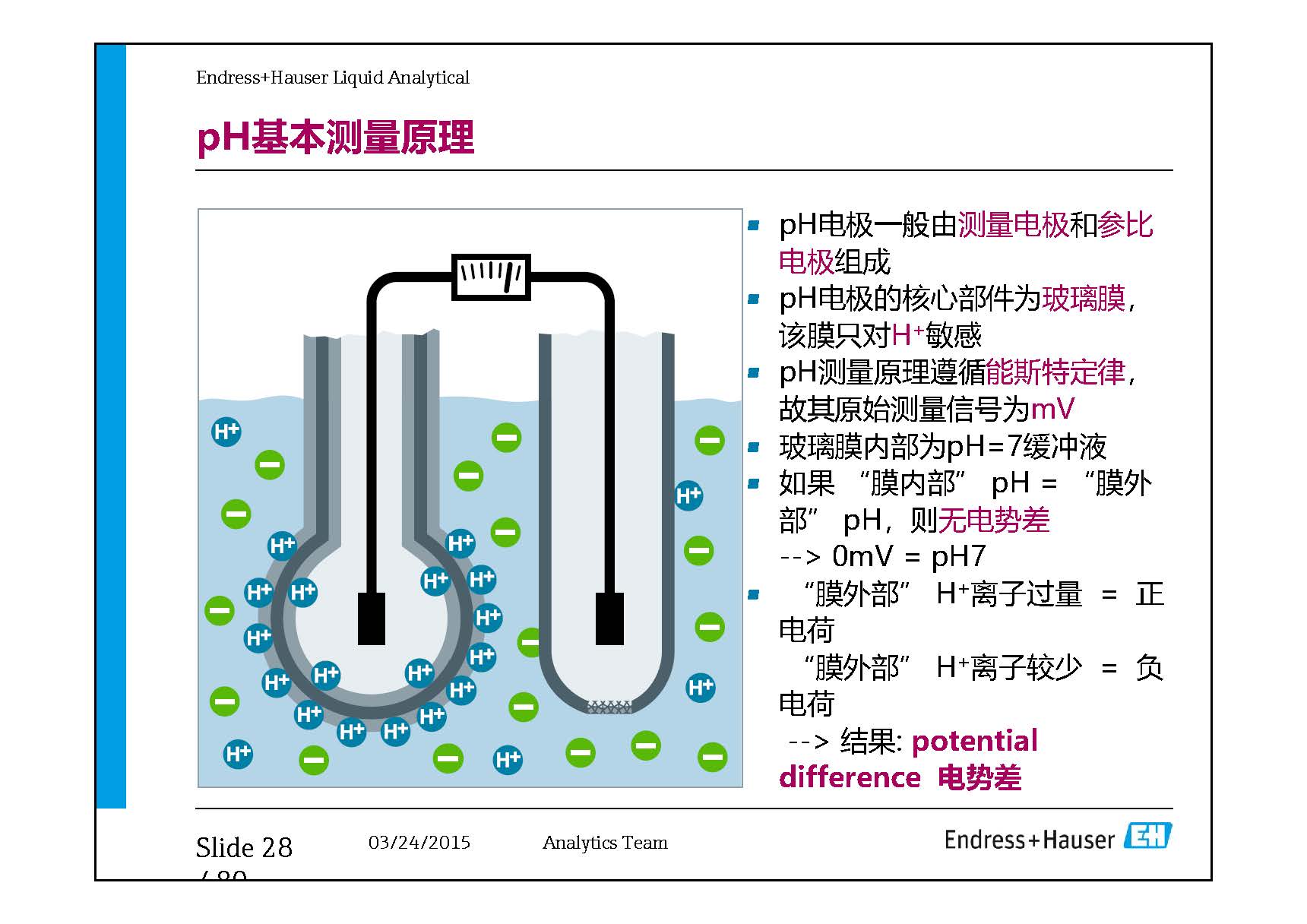

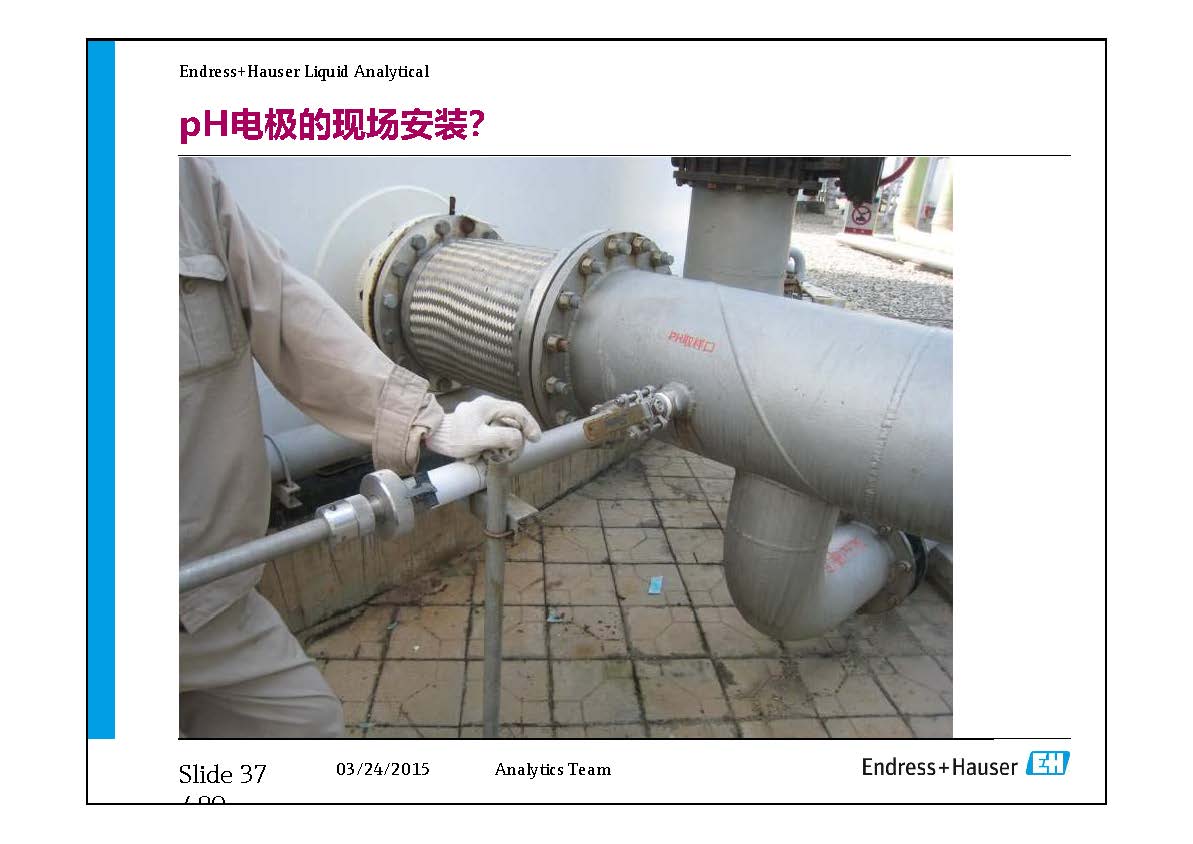

pH Analyzer

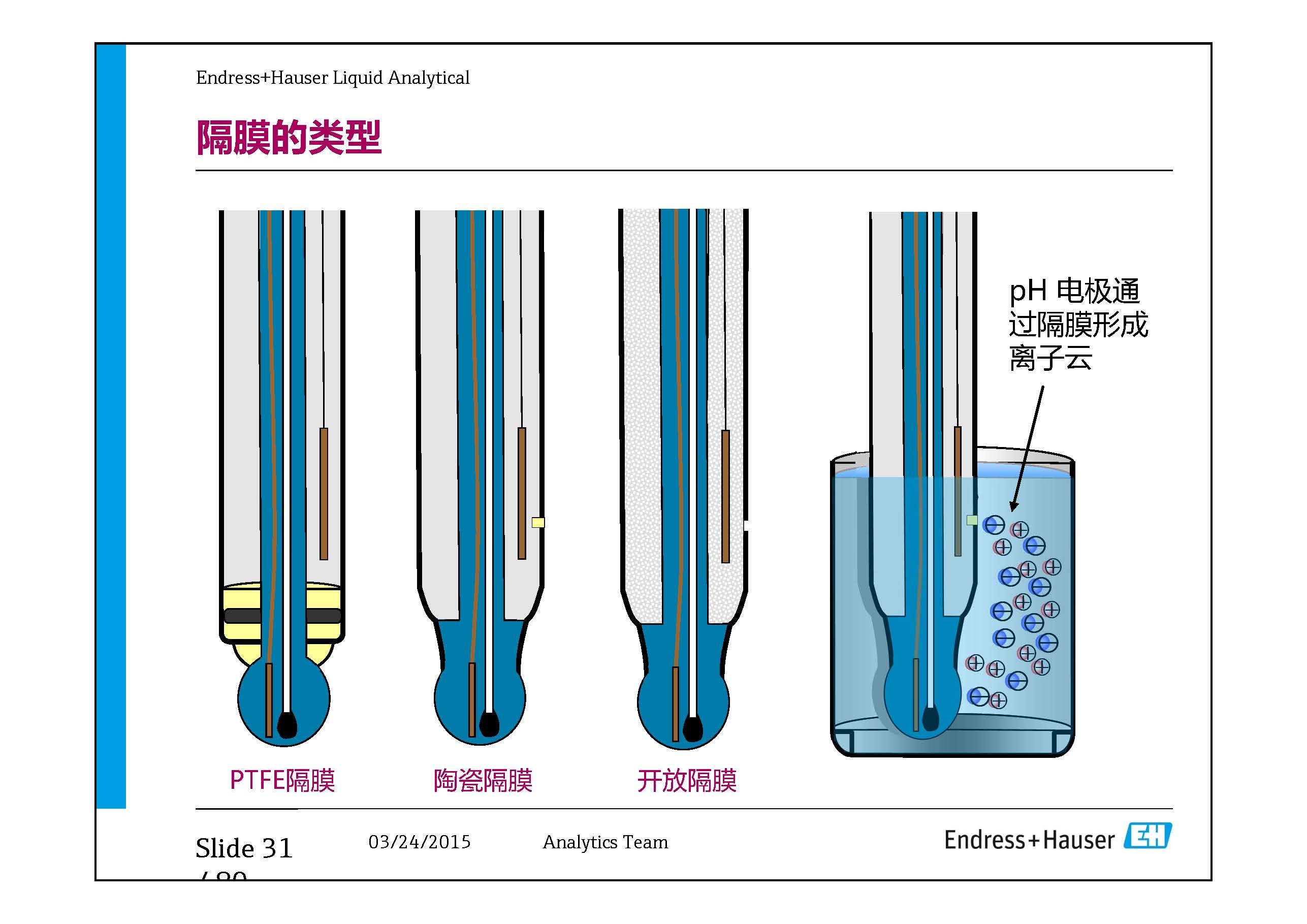

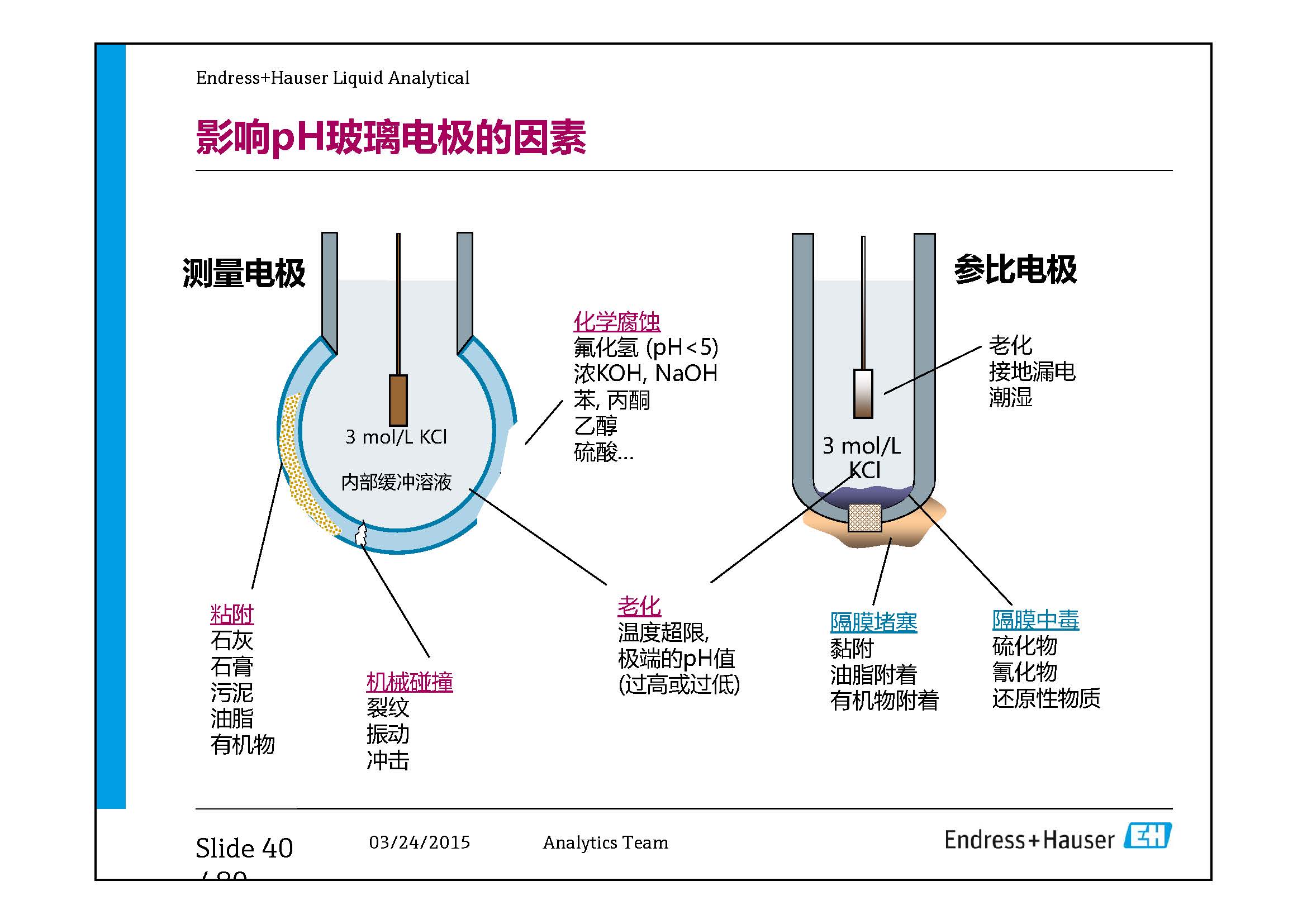

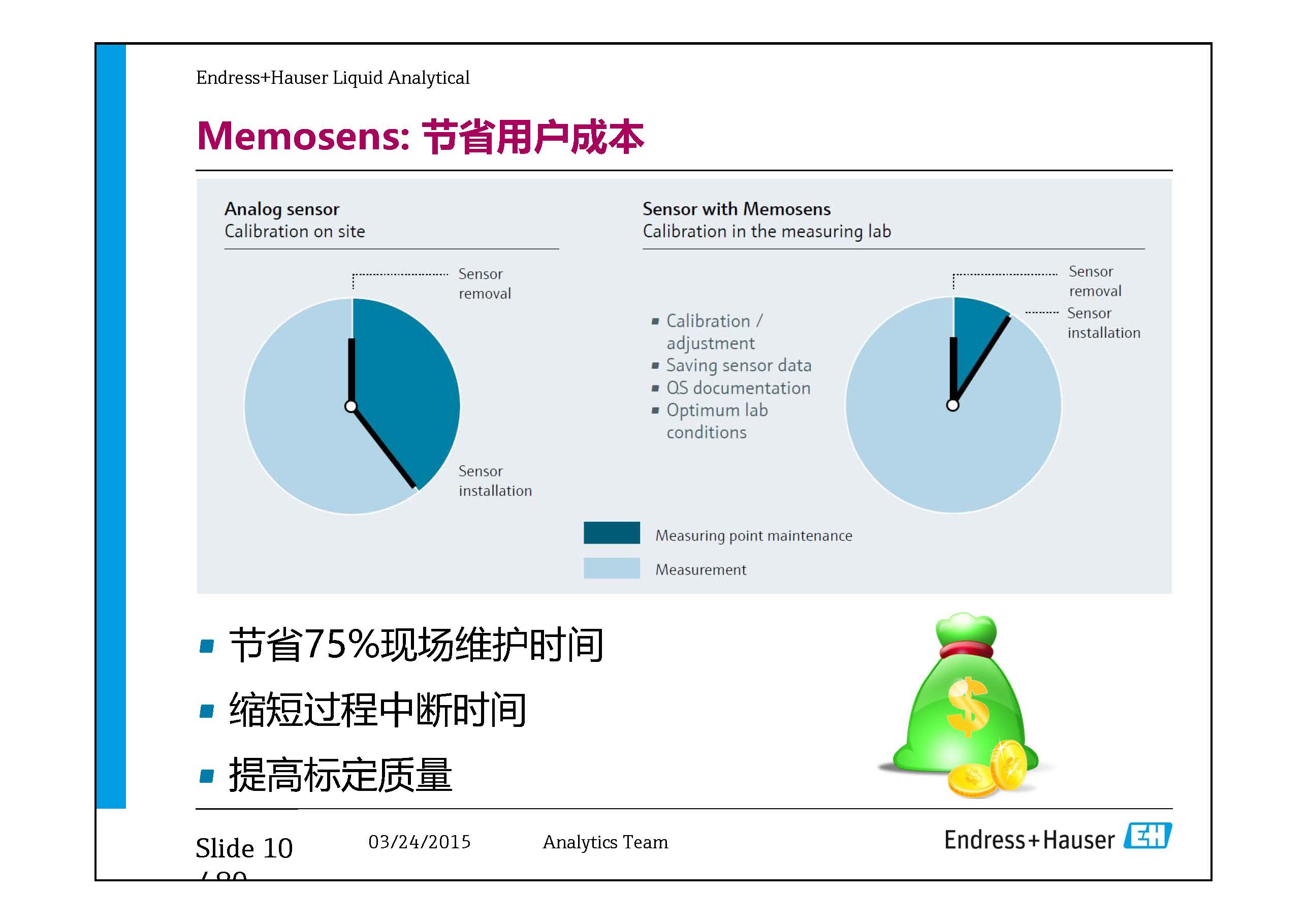

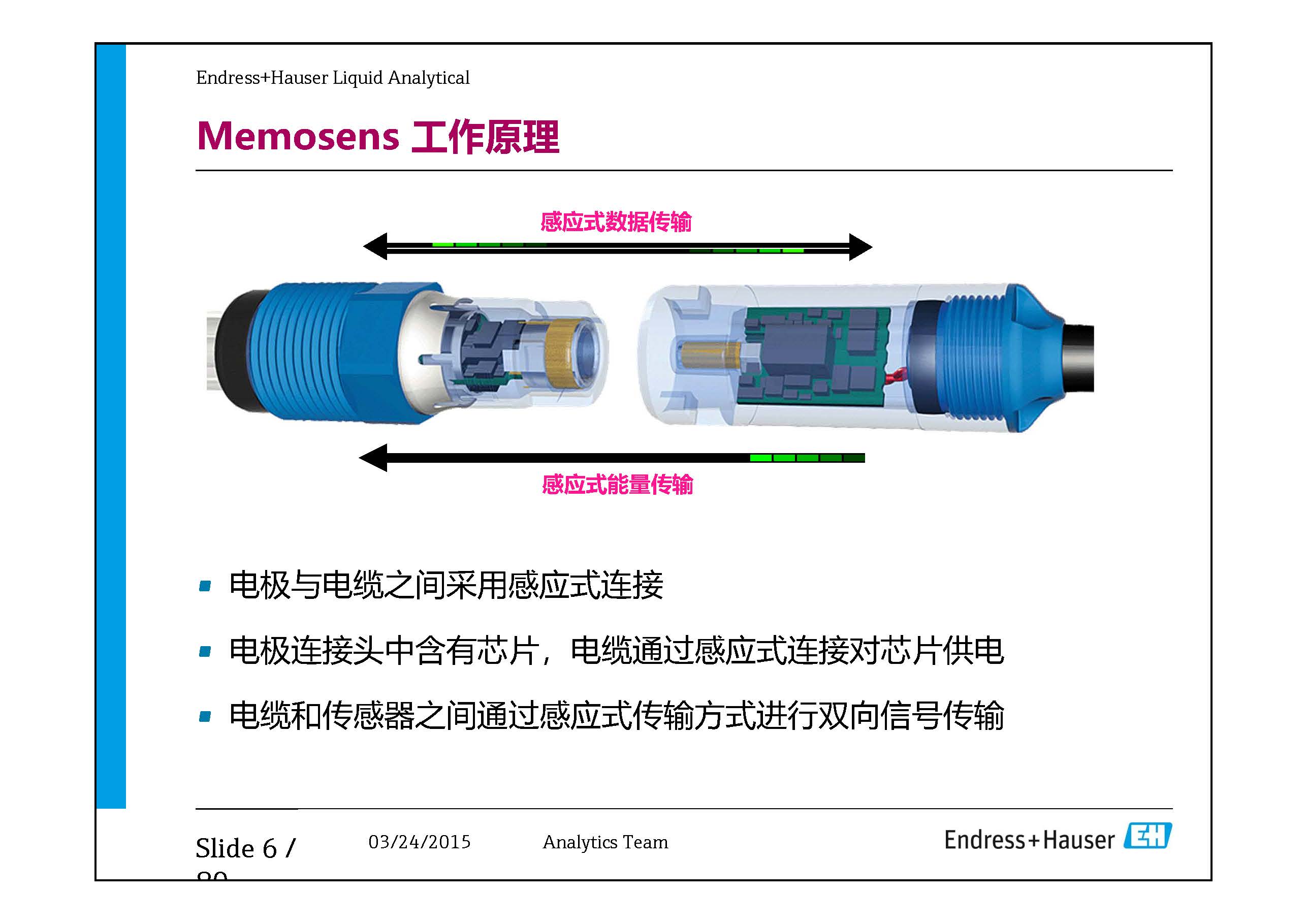

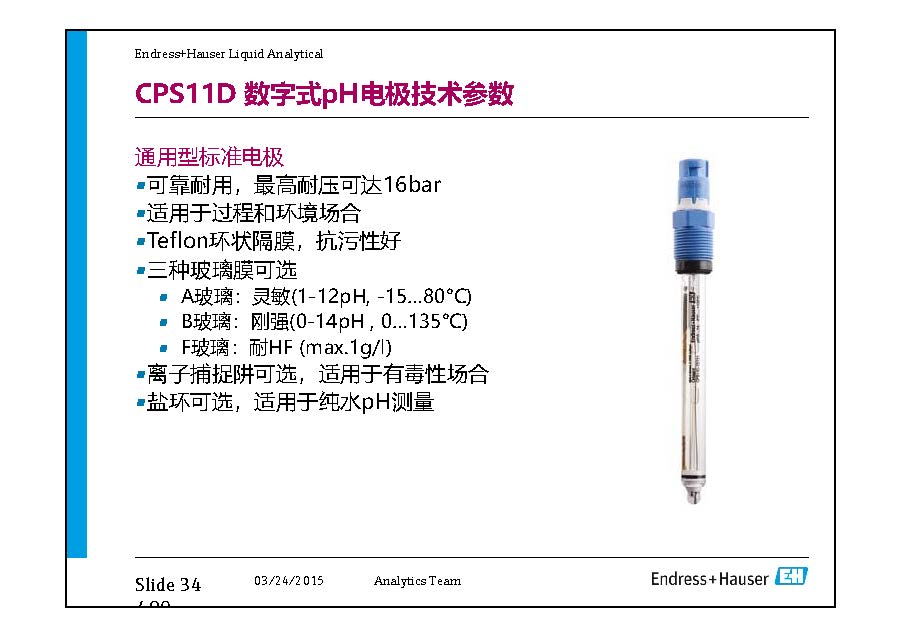

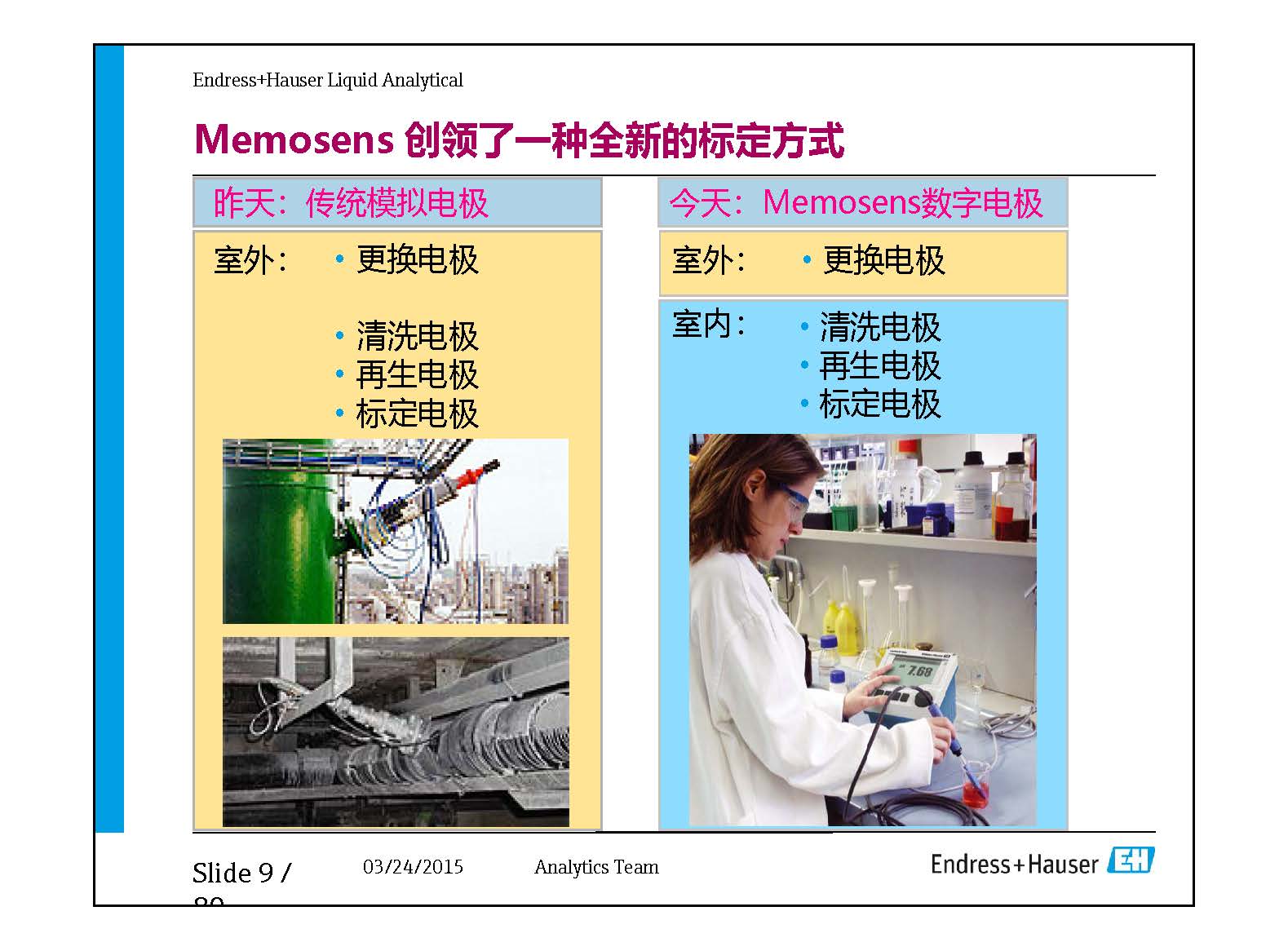

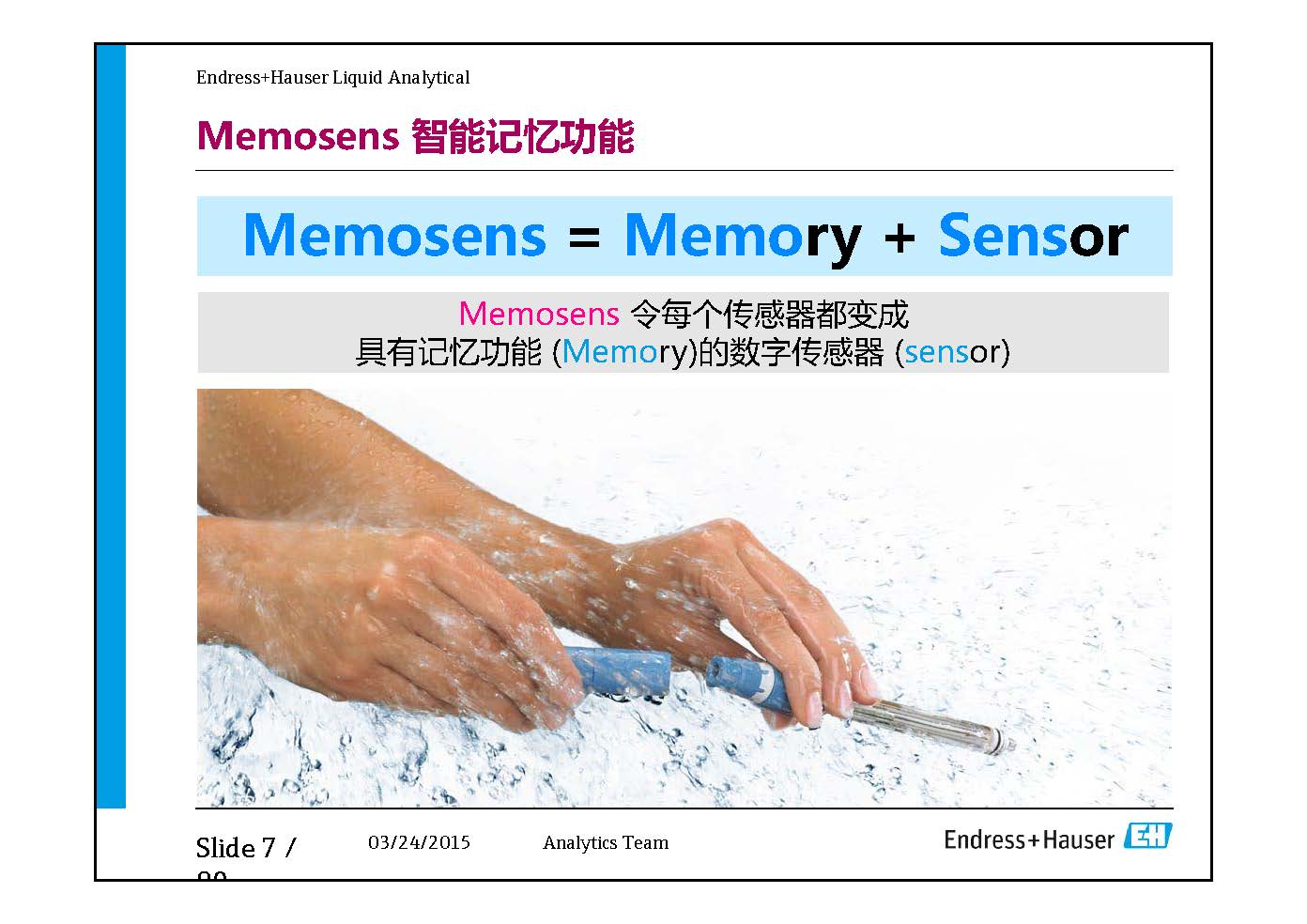

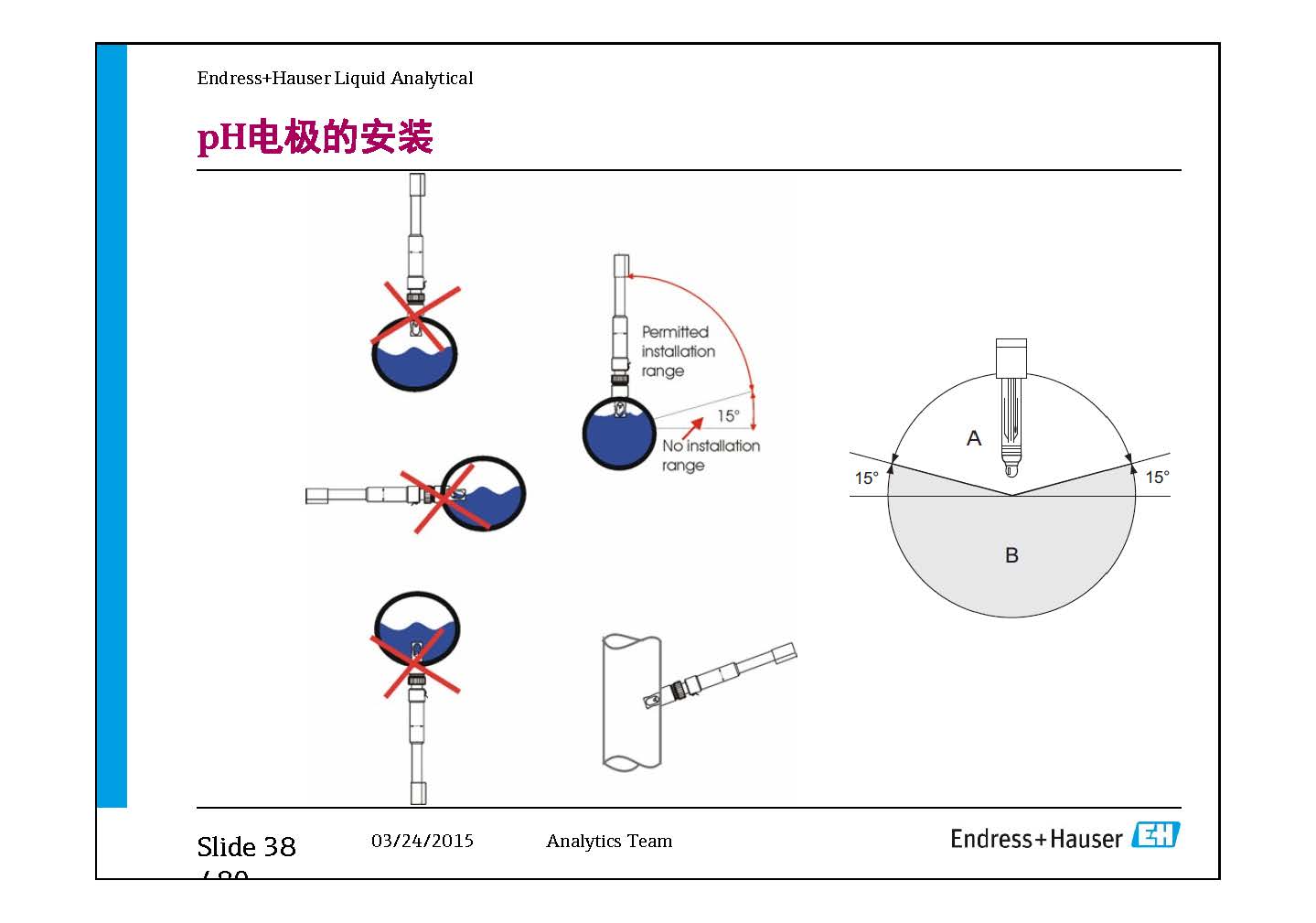

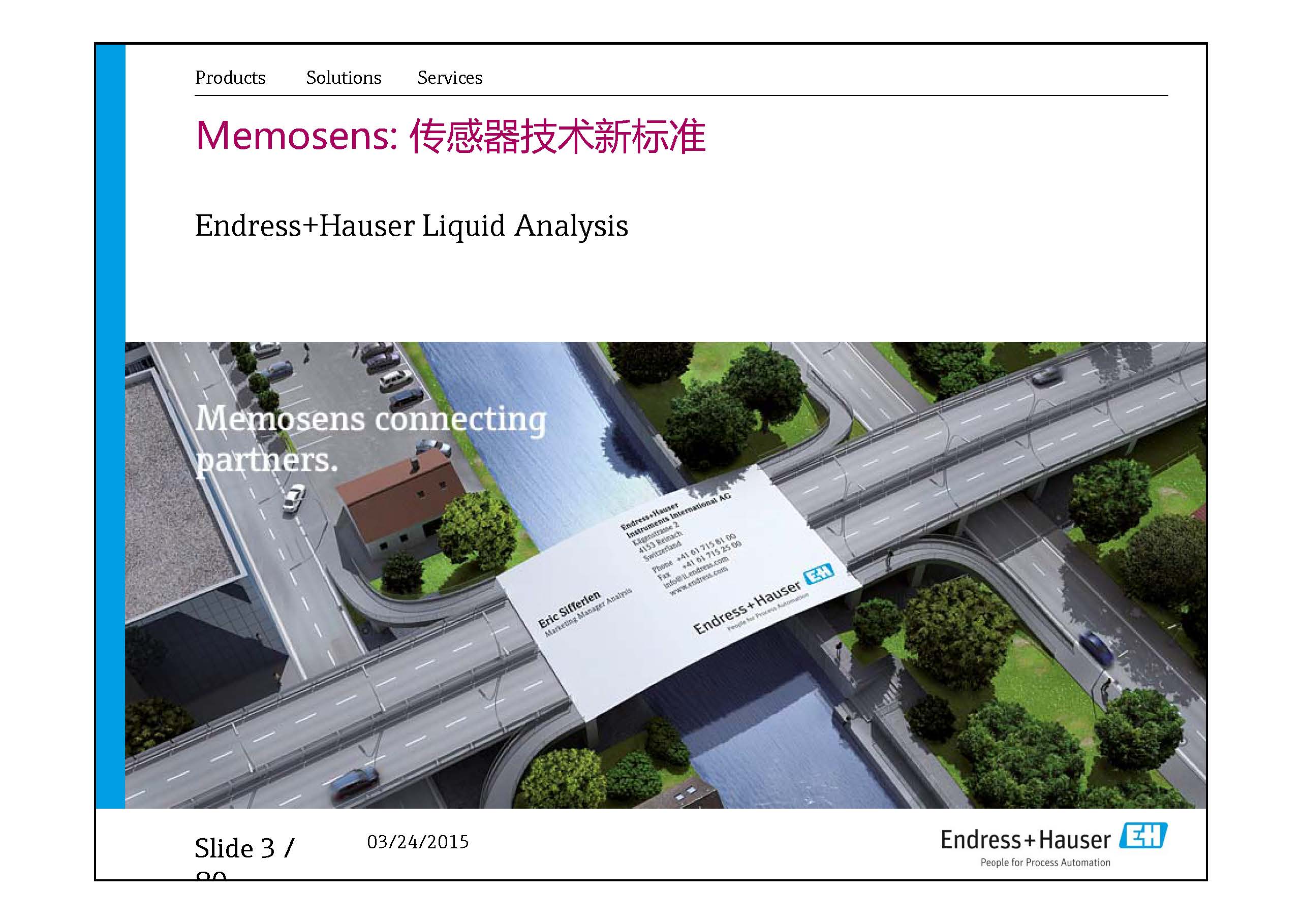

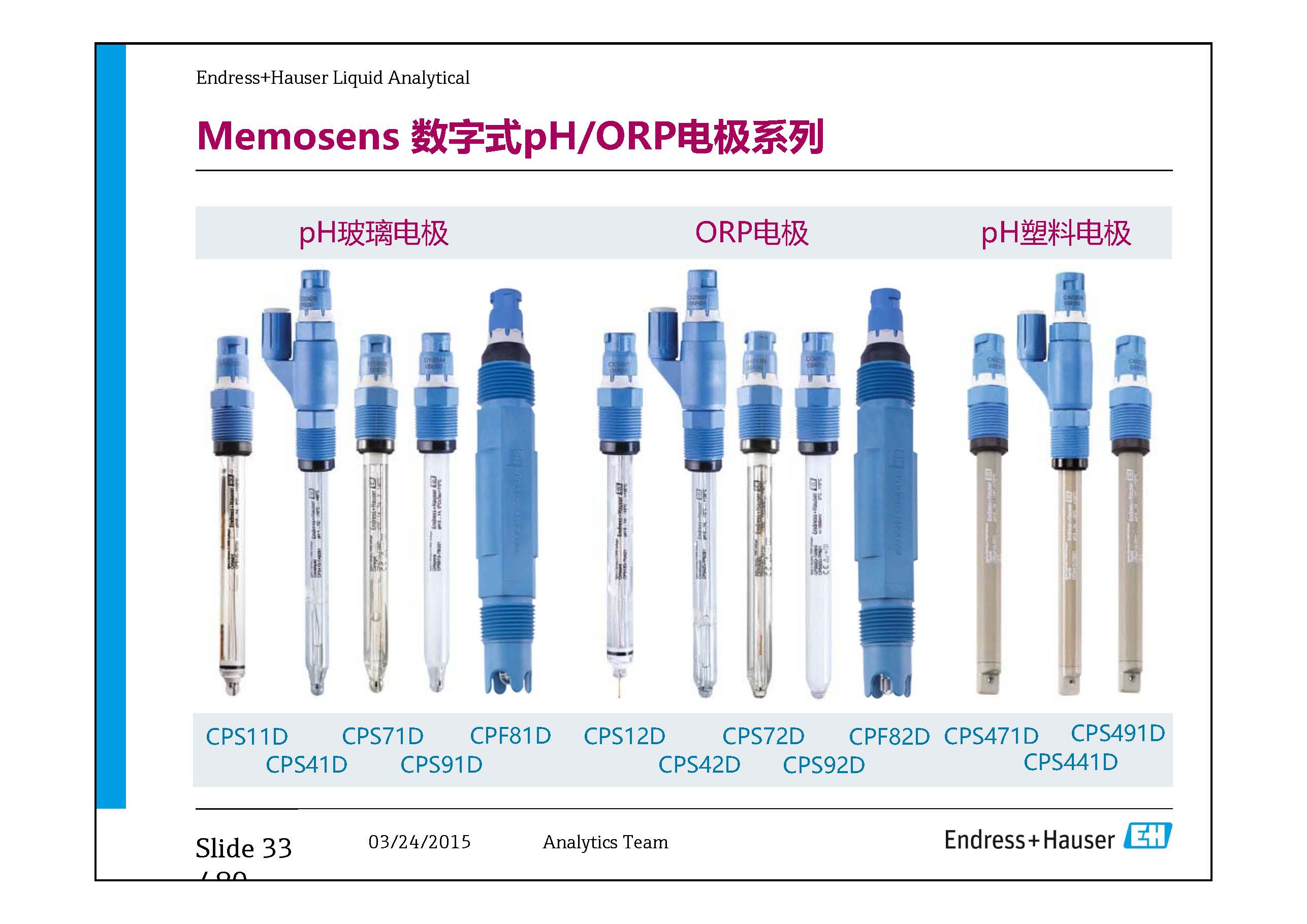

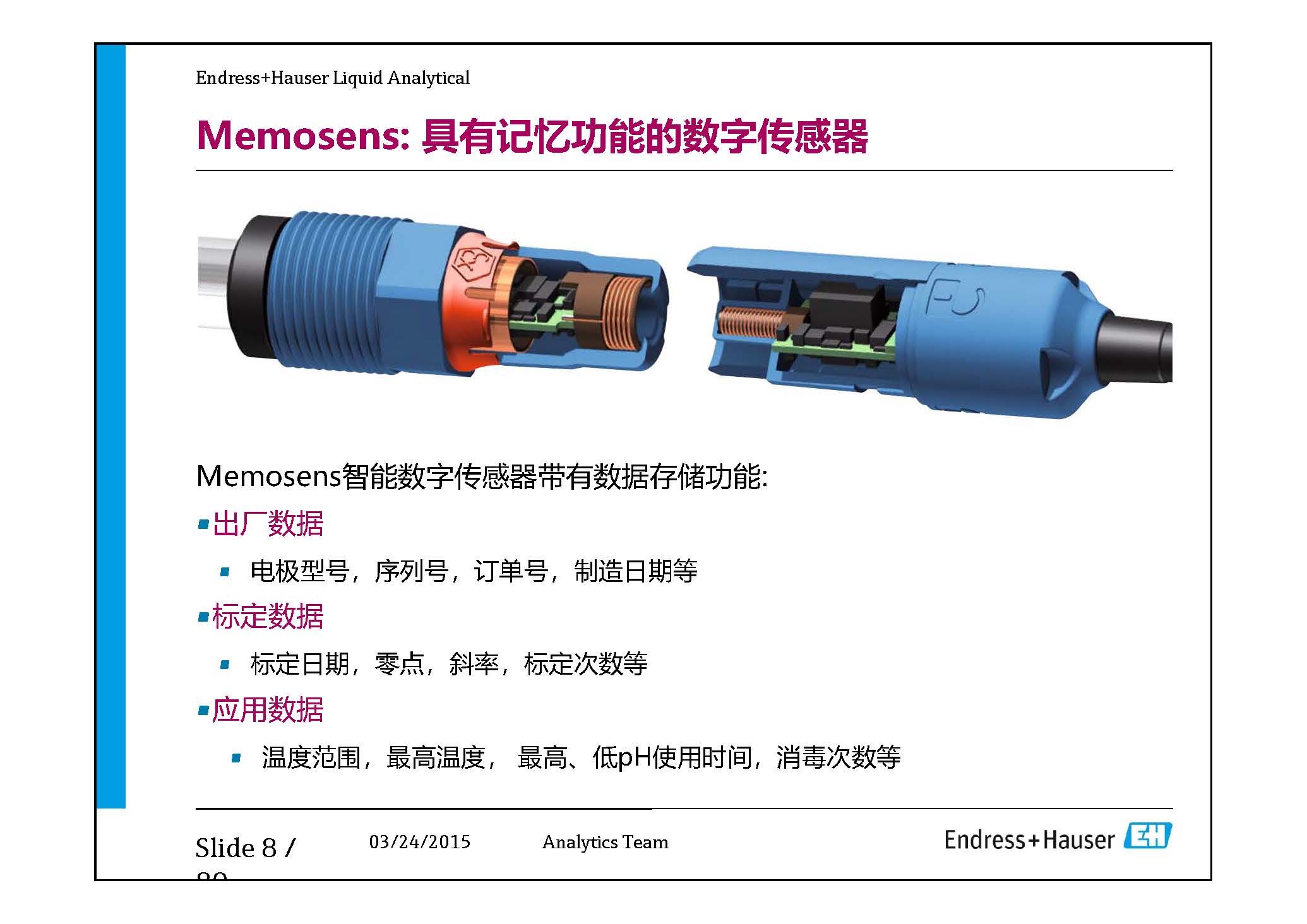

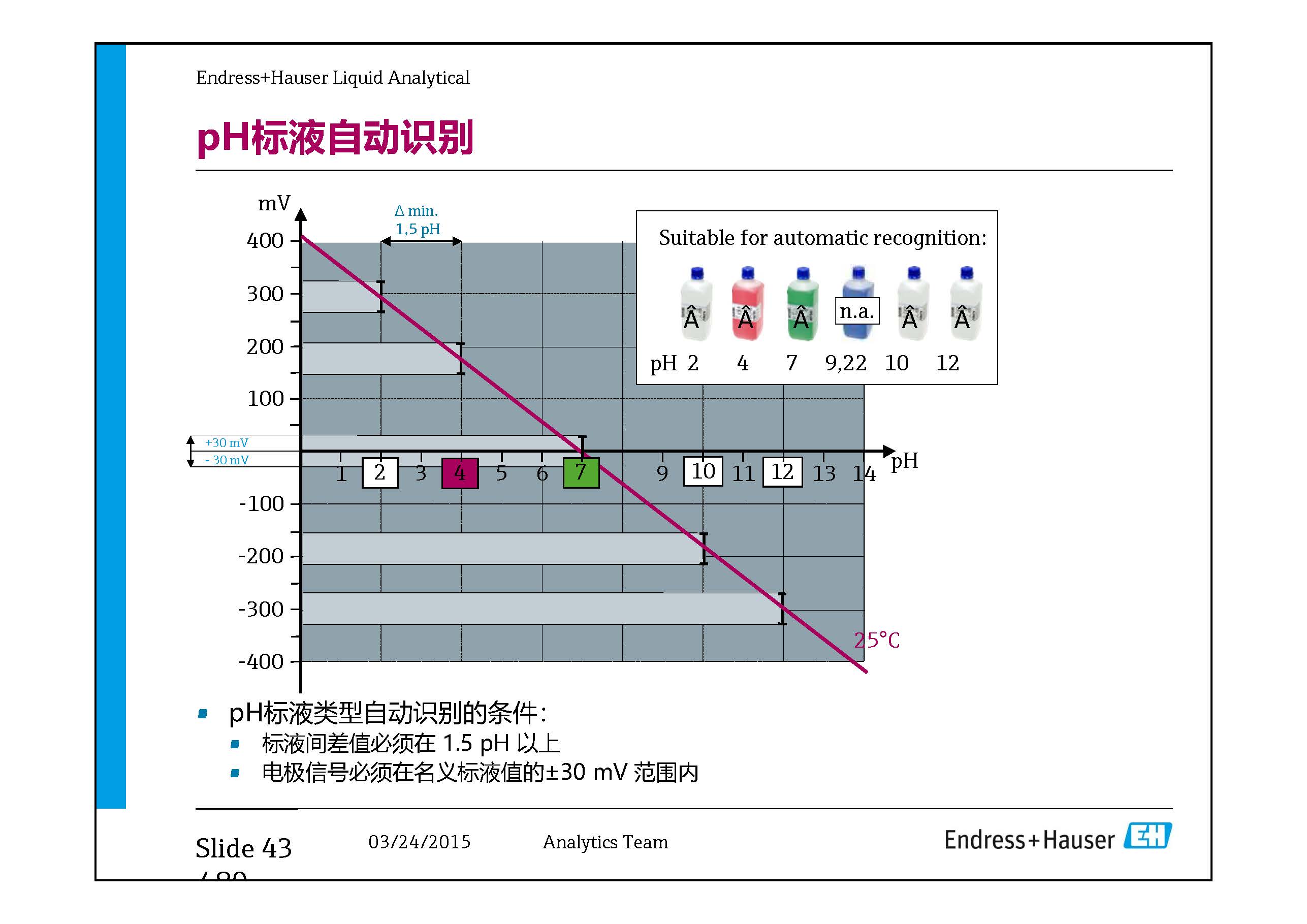

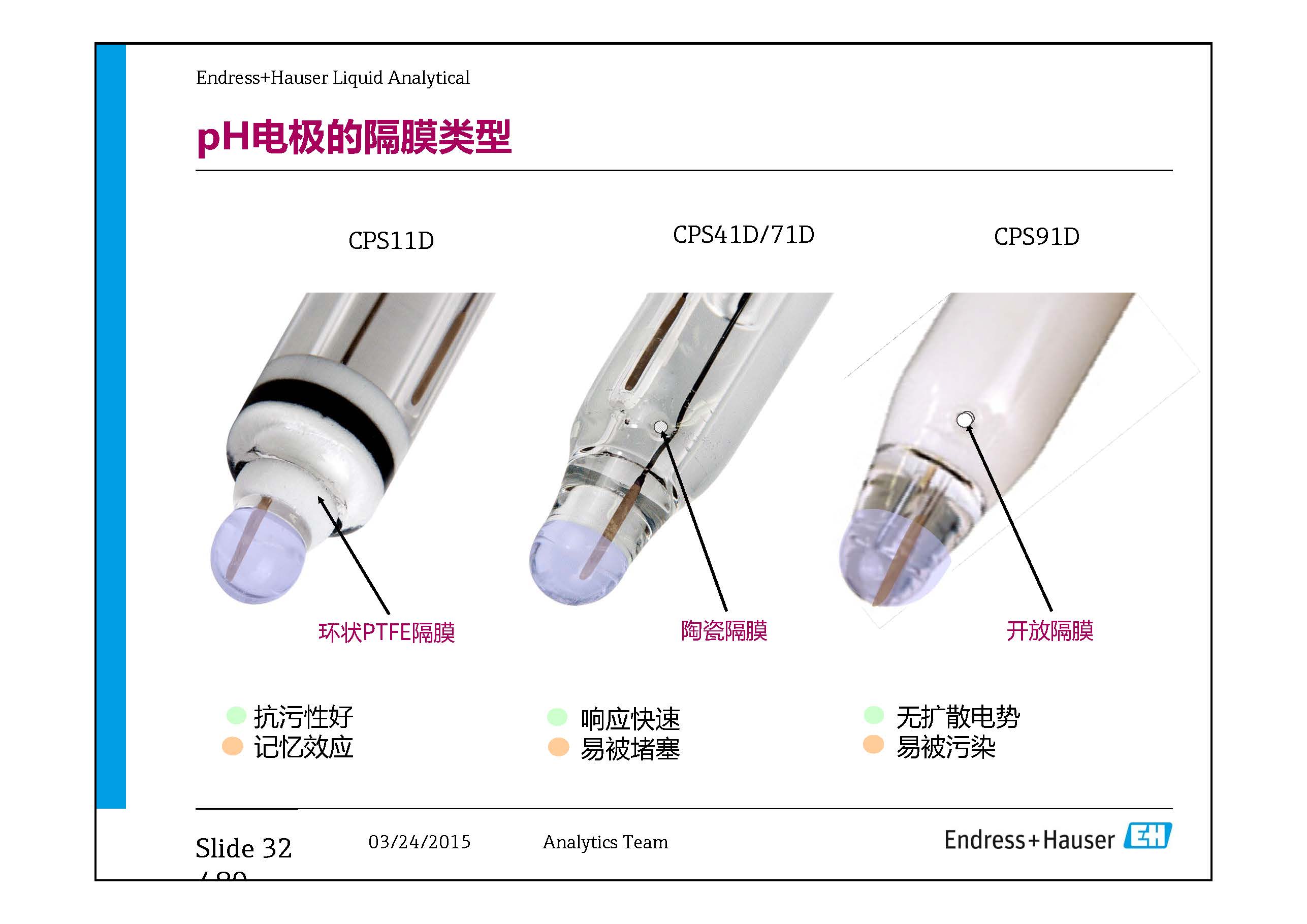

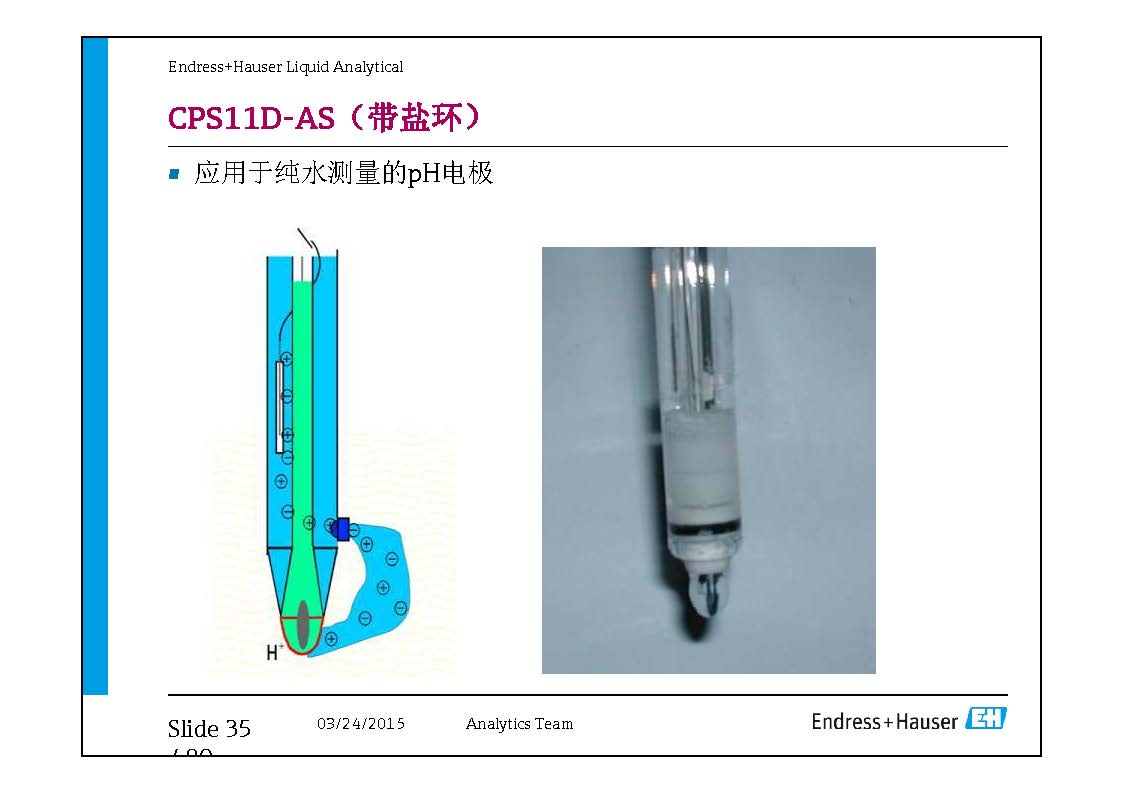

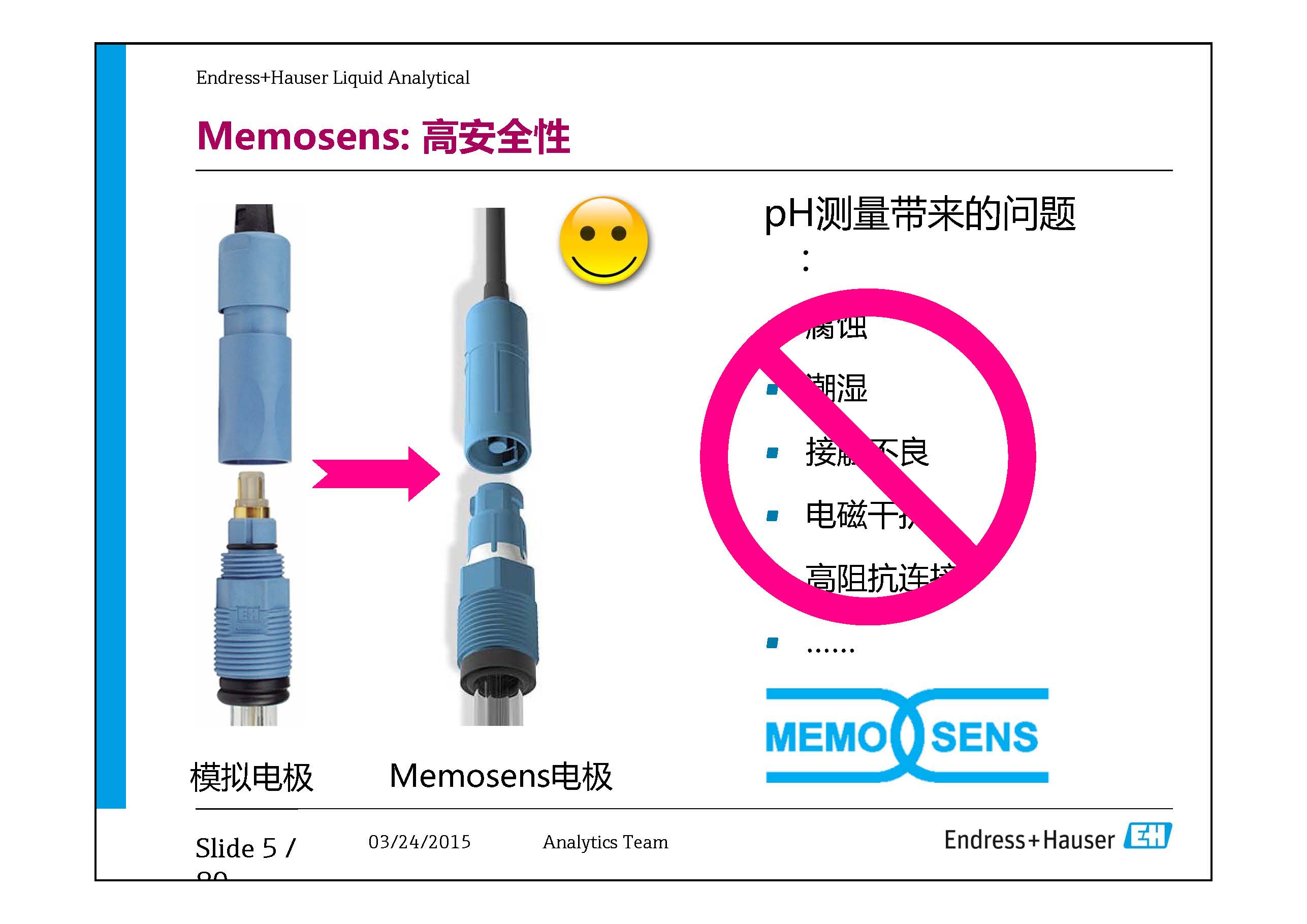

E+H offers a variety of pH electrodes and transmitters suitable for harsh conditions such as high temperature, high pressure, and strong corrosion. Its Memosens digital technology simplifies calibration and maintenance and supports plug-and-play. Typical products include Orbisint CPS11D, Ceragel CPS71D, etc.
- Measuring range: 0-14 pH
- Accuracy: ±0.01 pH
- Process temperature: -15~135°C
- Process pressure: max 16 bar
ORP Analyzer
ORP (oxidation-reduction potential) measurement is used to monitor disinfection effectiveness and chemical reaction processes. E+H's ORP electrodes use the same platform as pH electrodes and can be quickly integrated.
- Measuring range: -1500~+1500 mV
- Response time: <10 seconds
- Applications: drinking water disinfection, swimming pool water, industrial wastewater

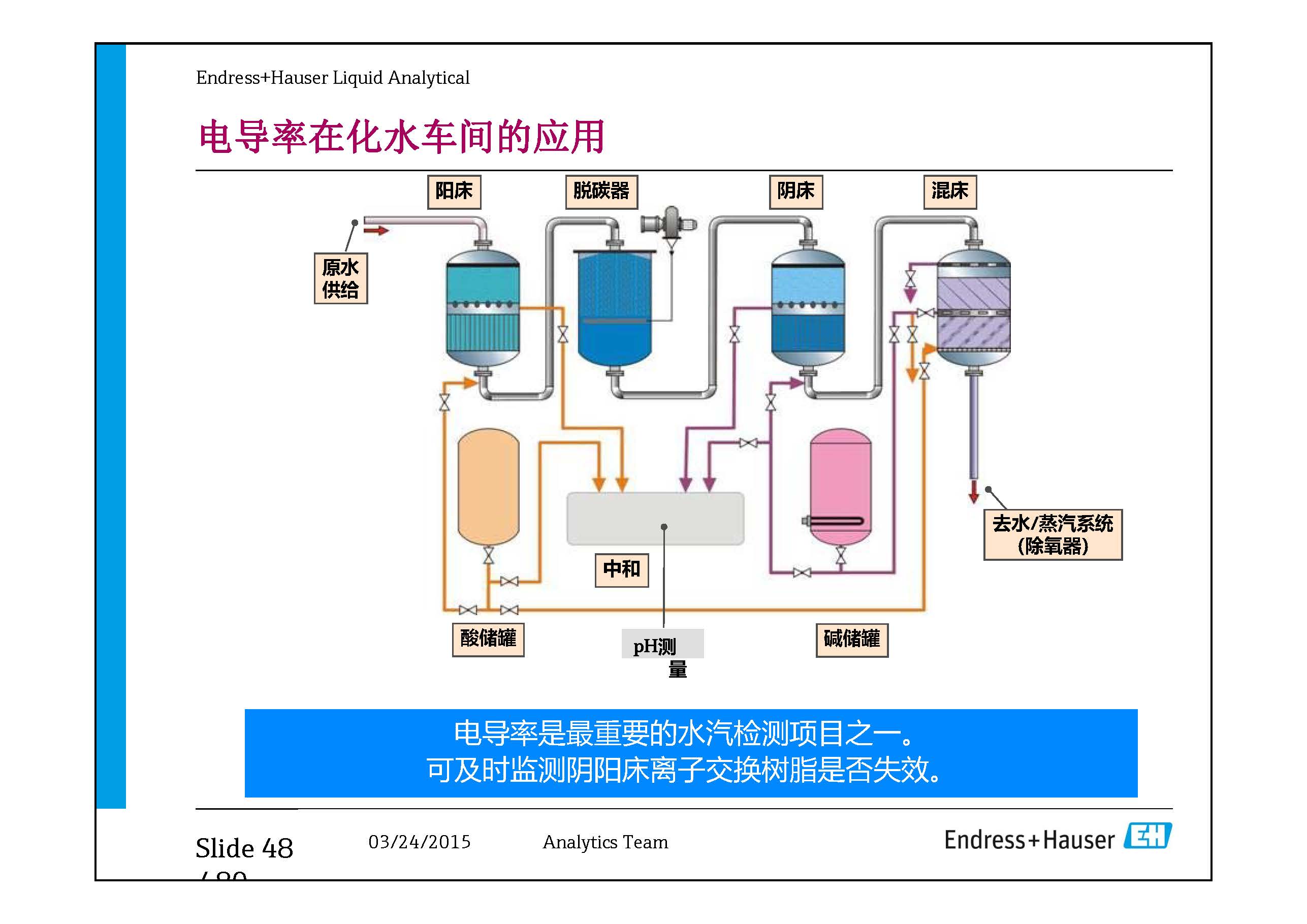

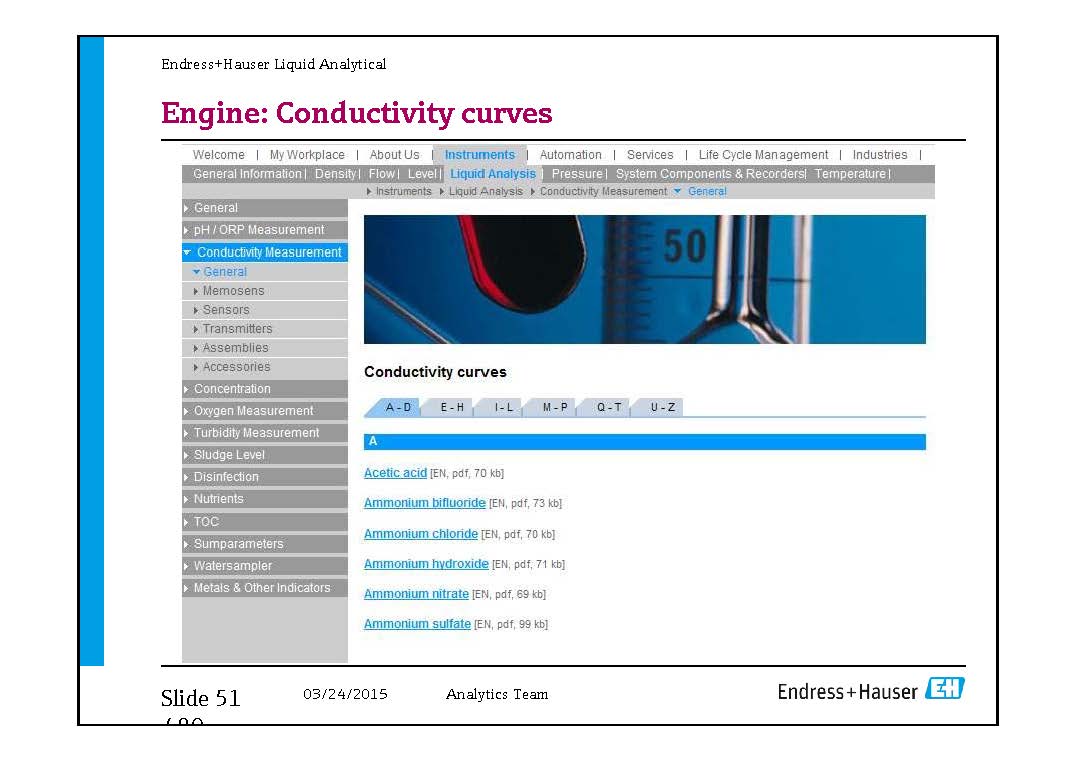

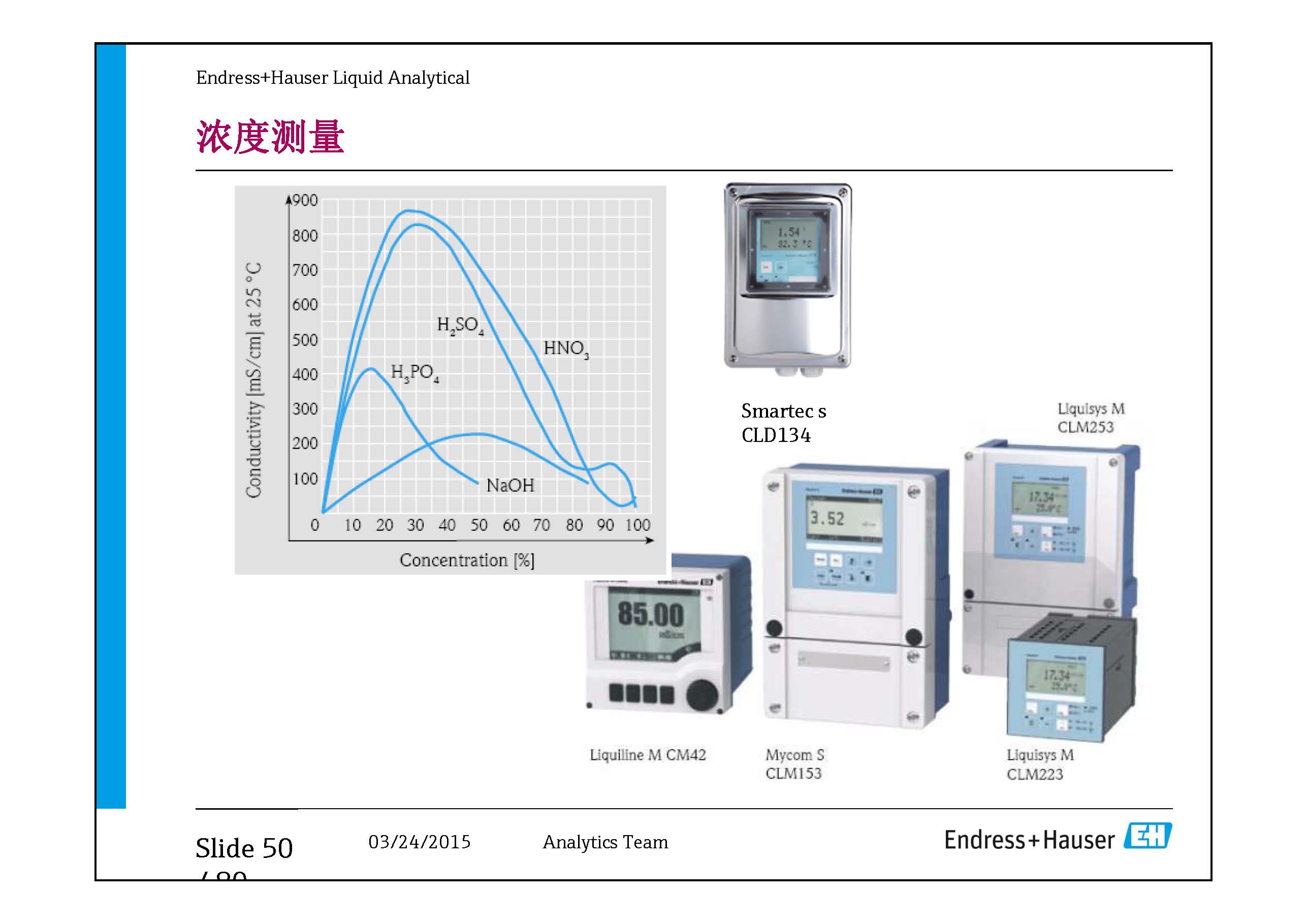

Conductivity Measurement

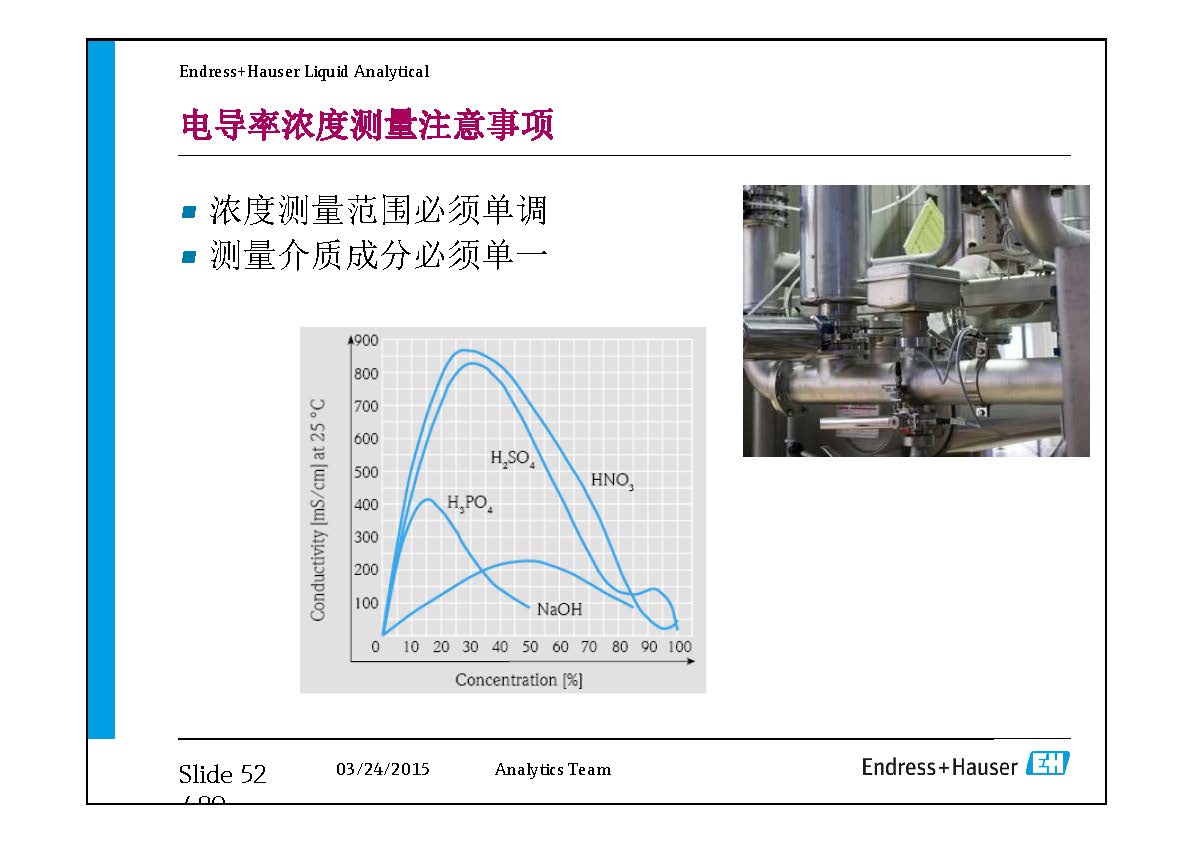

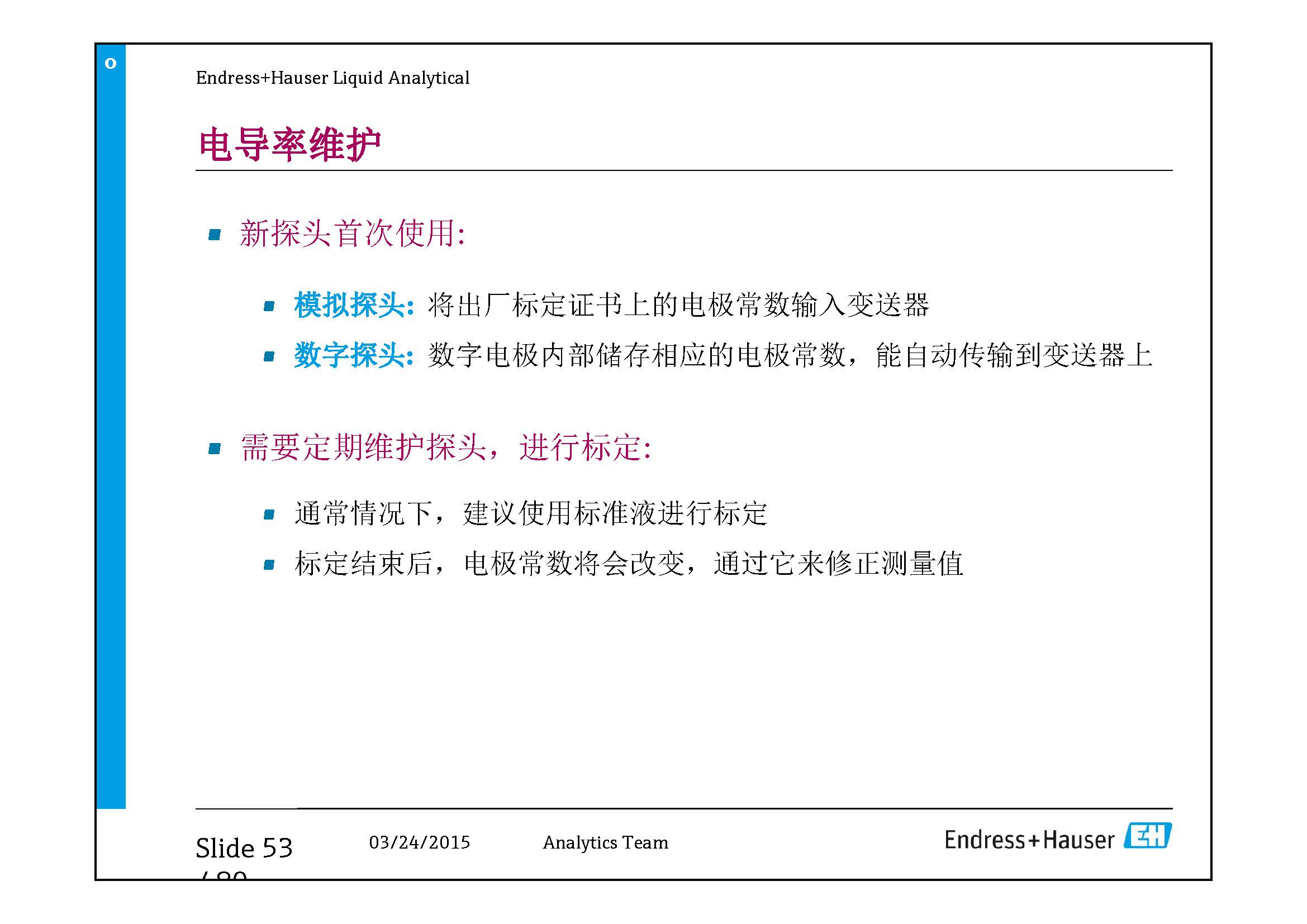

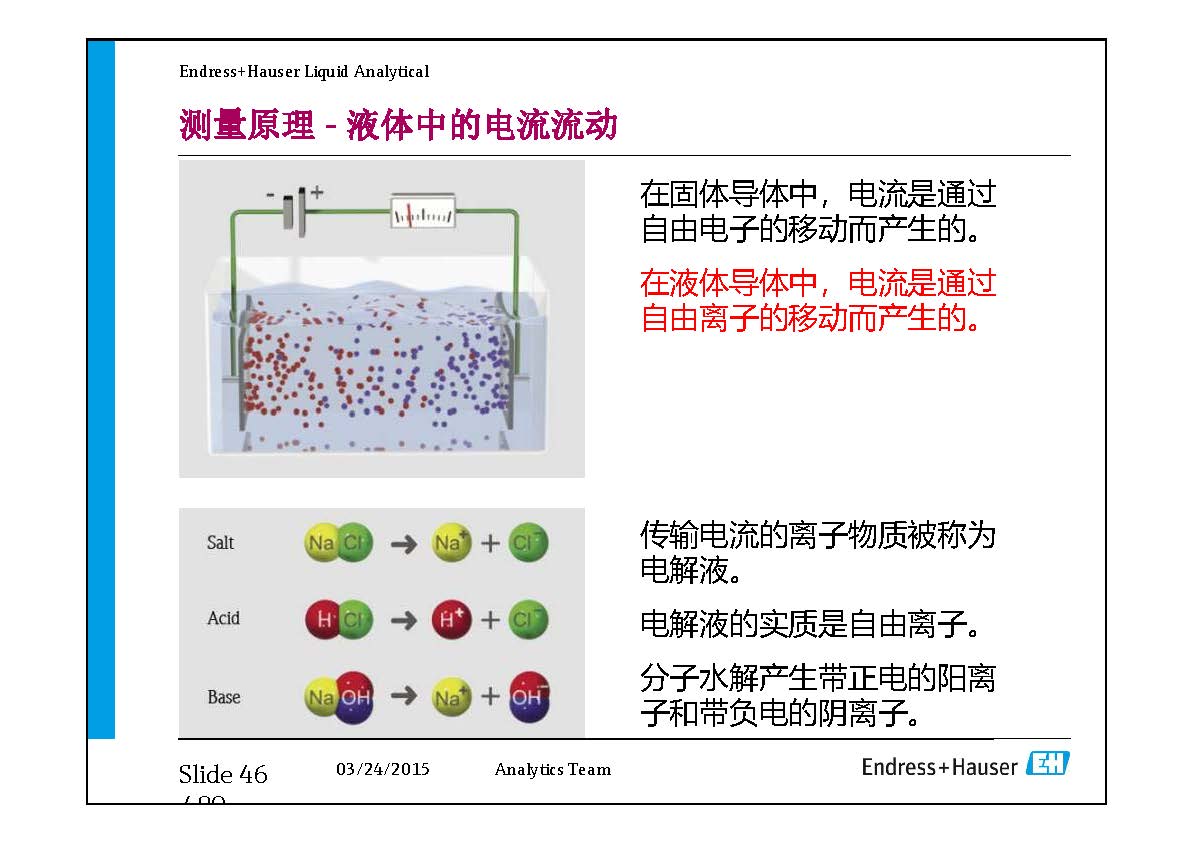

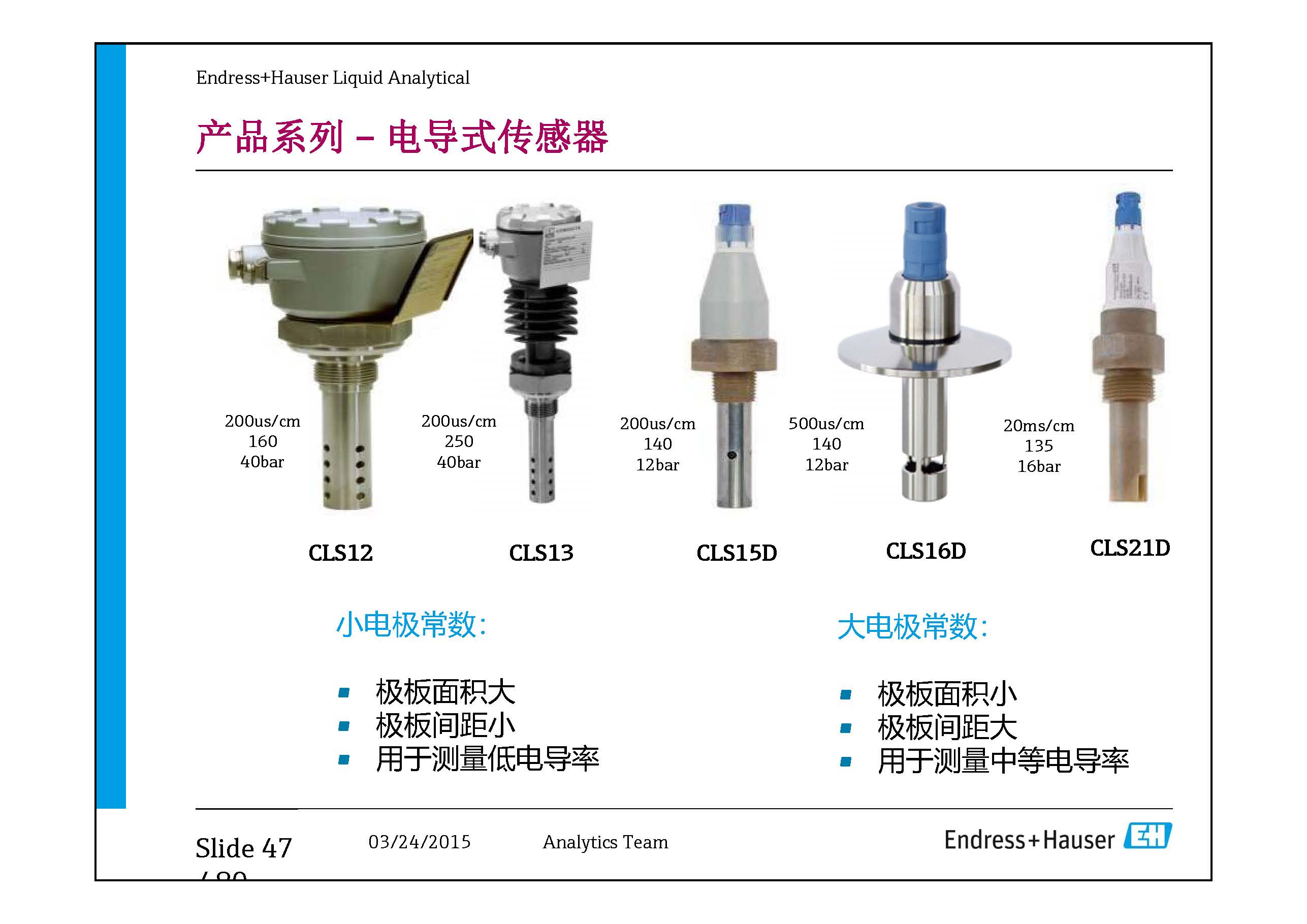

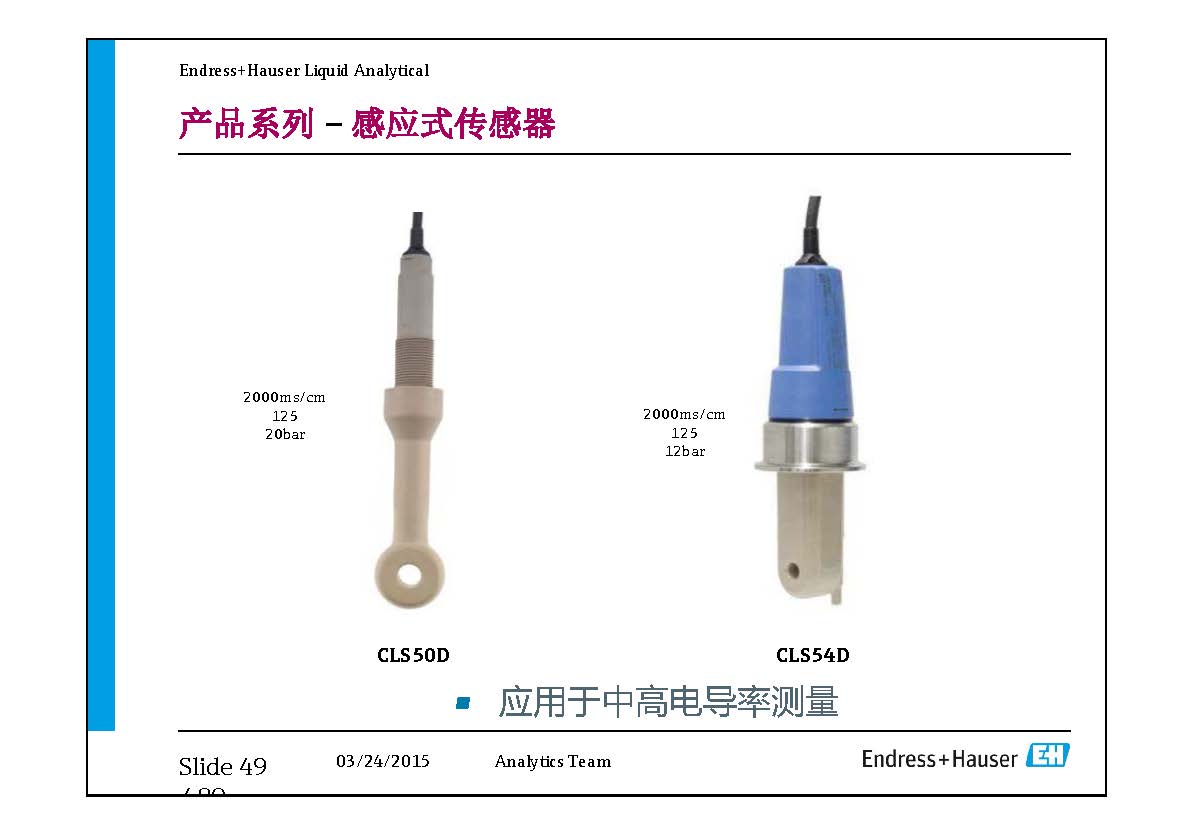

E+H conductivity meters are divided into contact and inductive types, covering ultrapure water to high-concentration acid and alkali solutions. Its Smartec series transmitters support multiple communication protocols.
| Model | Measuring Range | Accuracy | Application |
|---|---|---|---|
| CLS15 | 0.04~20 µS/cm | ±1% | Ultrapure water |
| CLS21 | 10 µS/cm~20 mS/cm | ±0.5% | Drinking water |
| CLS50 | 0.1~2000 mS/cm | ±0.5% | Chemical processes |
Dissolved Oxygen Measurement

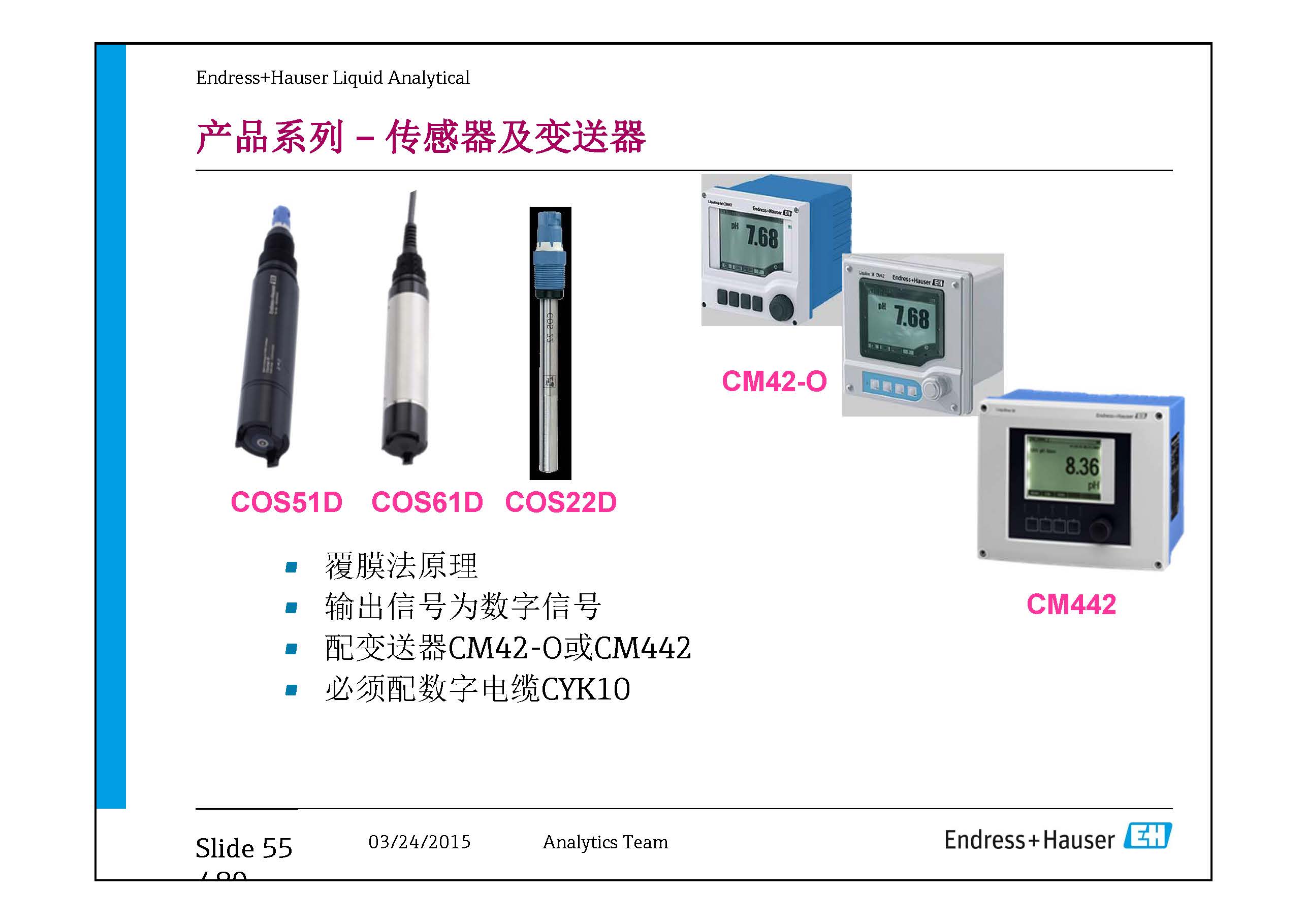

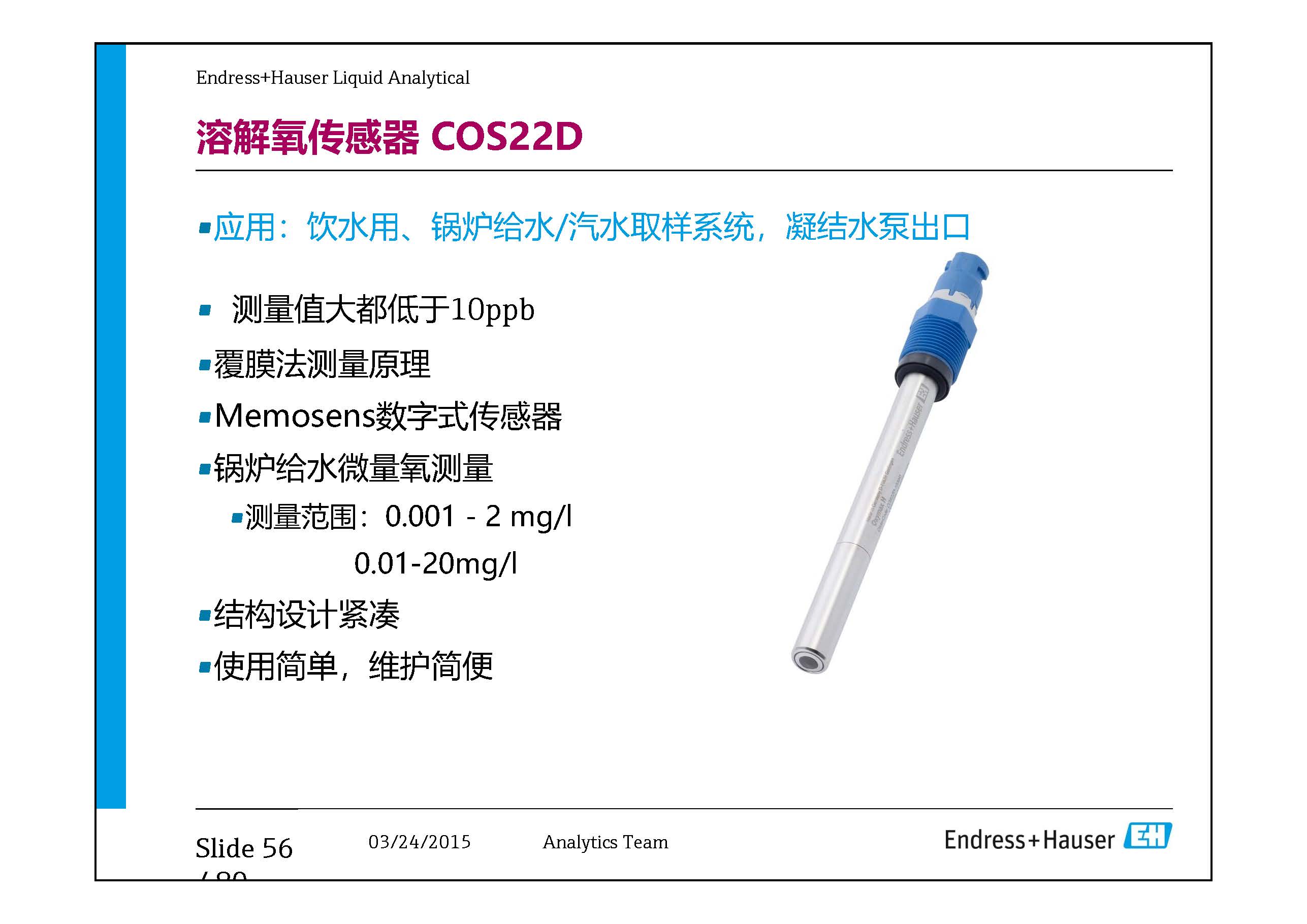

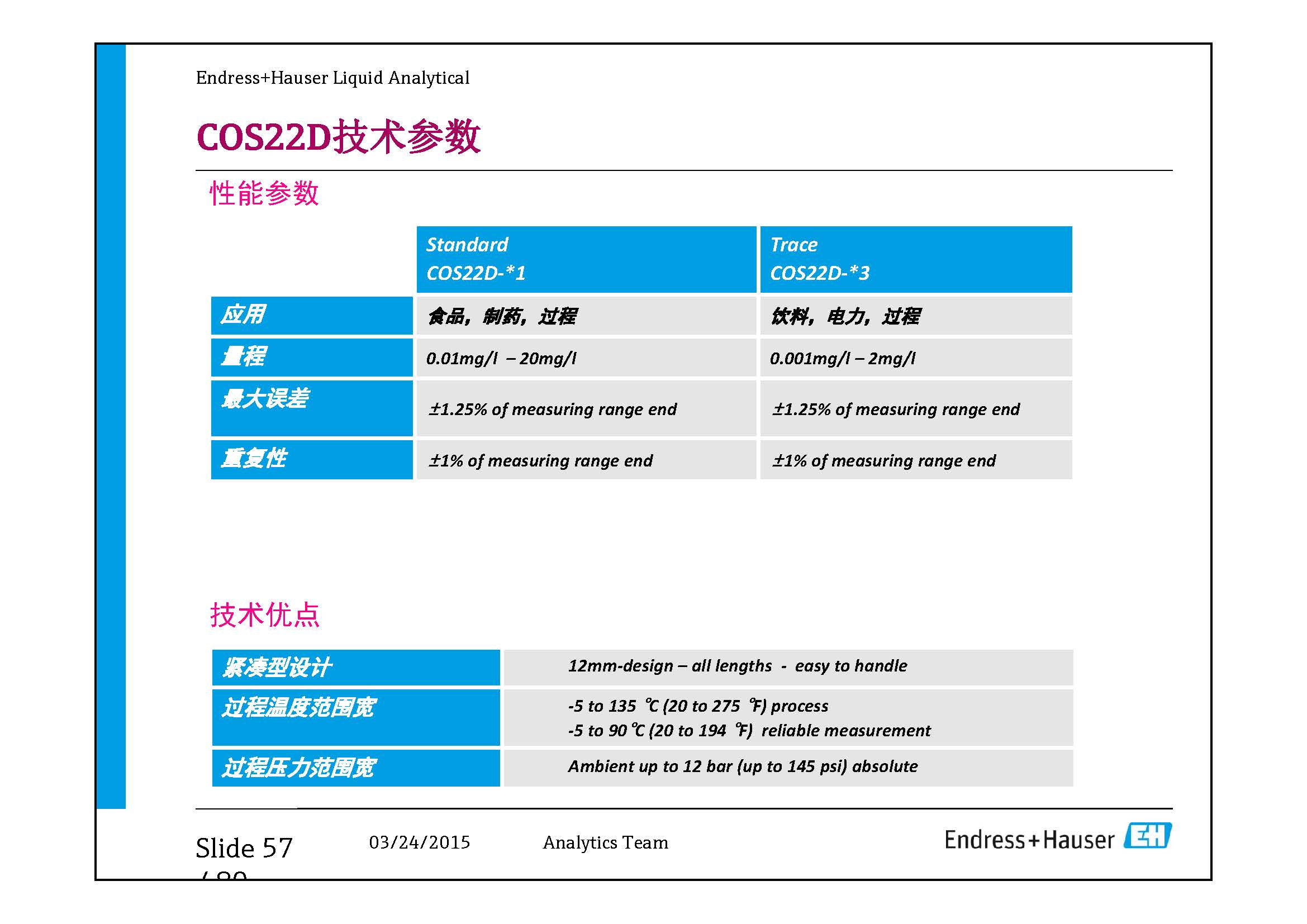

E+H offers both optical and electrochemical dissolved oxygen measurement technologies. The optical method (Oxymax COS61D) requires no electrolyte and has low maintenance; the electrochemical method (Oxymax COS22D) has fast response and is suitable for low-concentration measurement.
- Measuring range: 0~20 mg/L (extendable to 200% saturation)
- Accuracy: ±0.1 mg/L
- Process temperature: -5~80°C

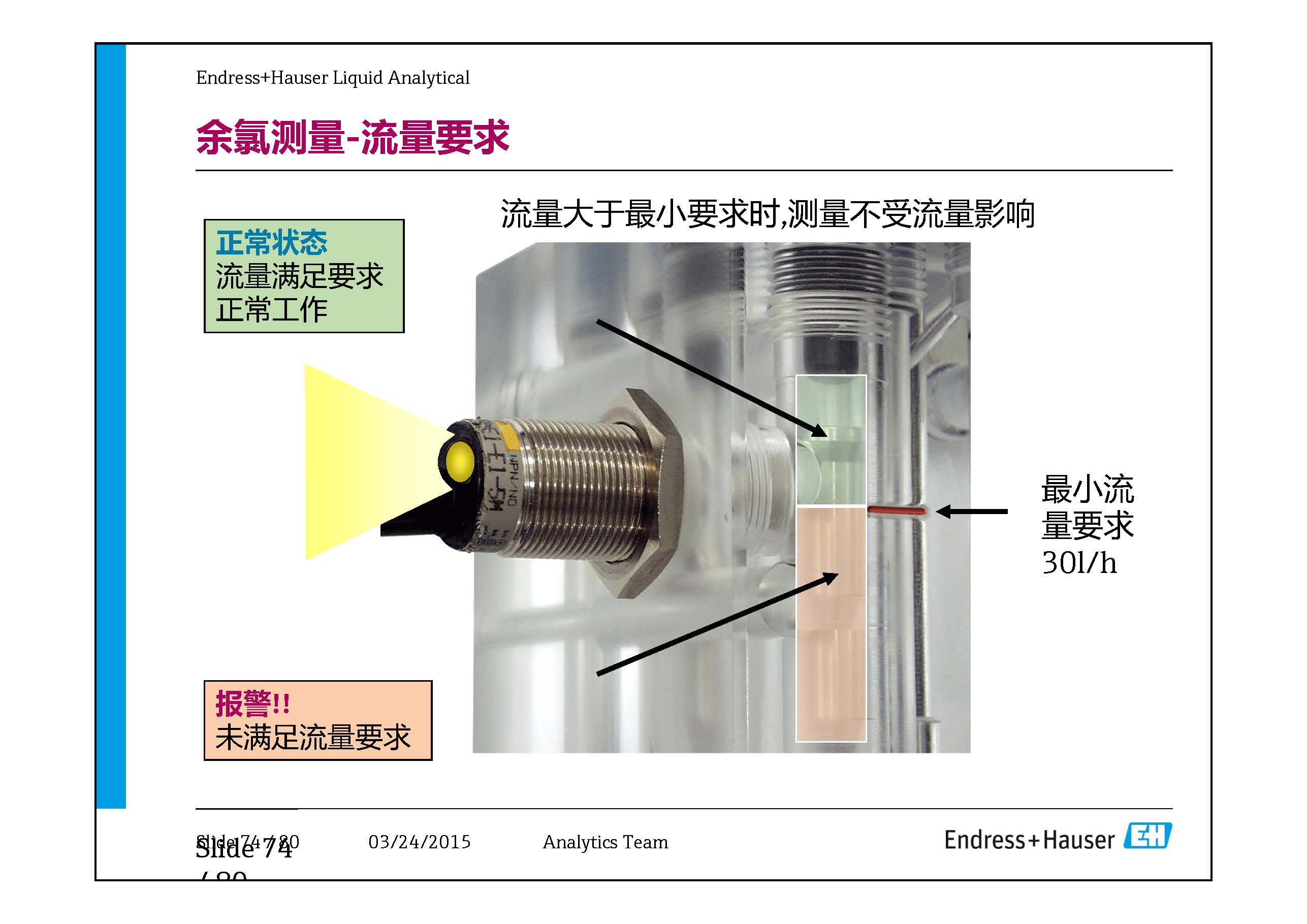

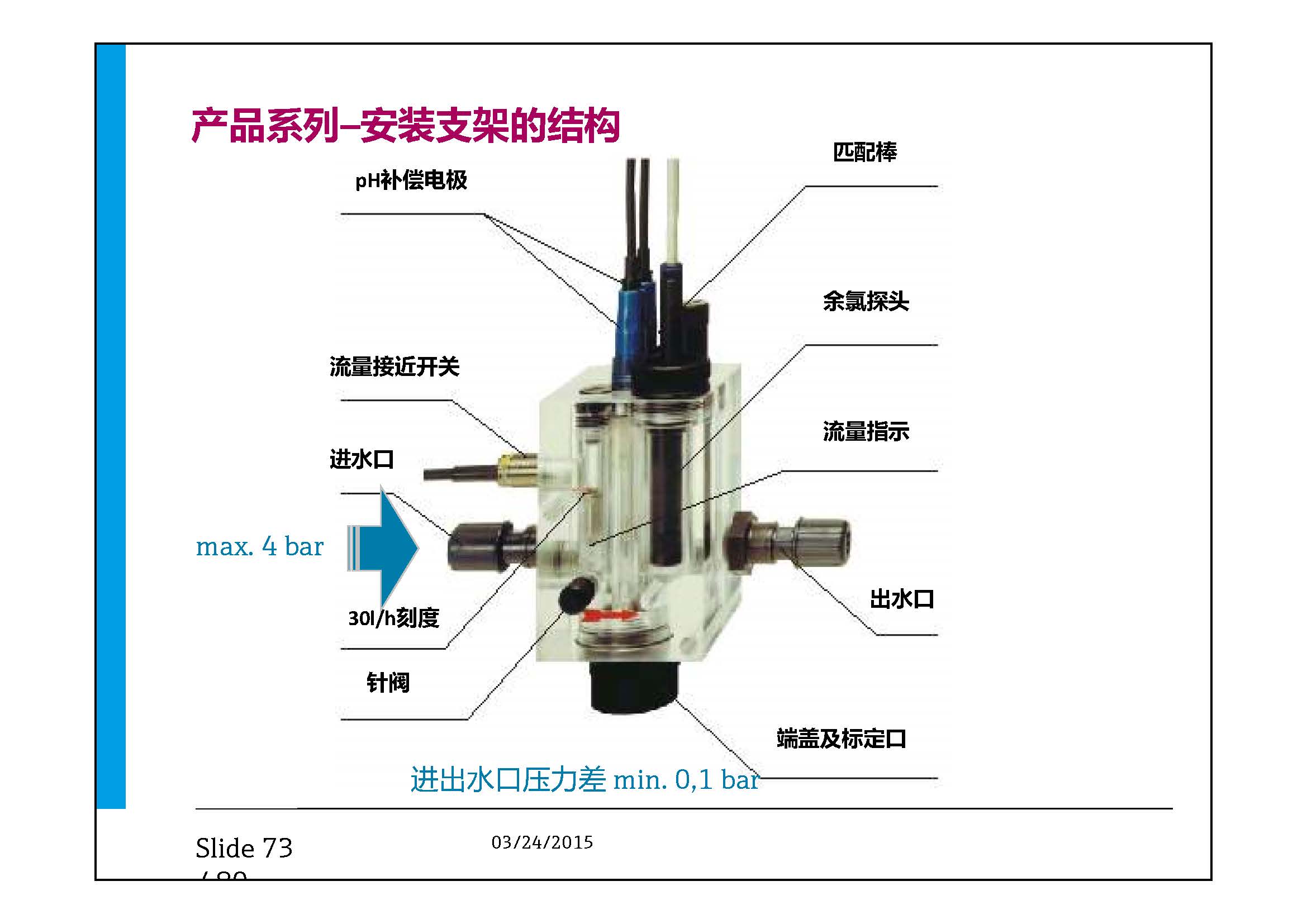

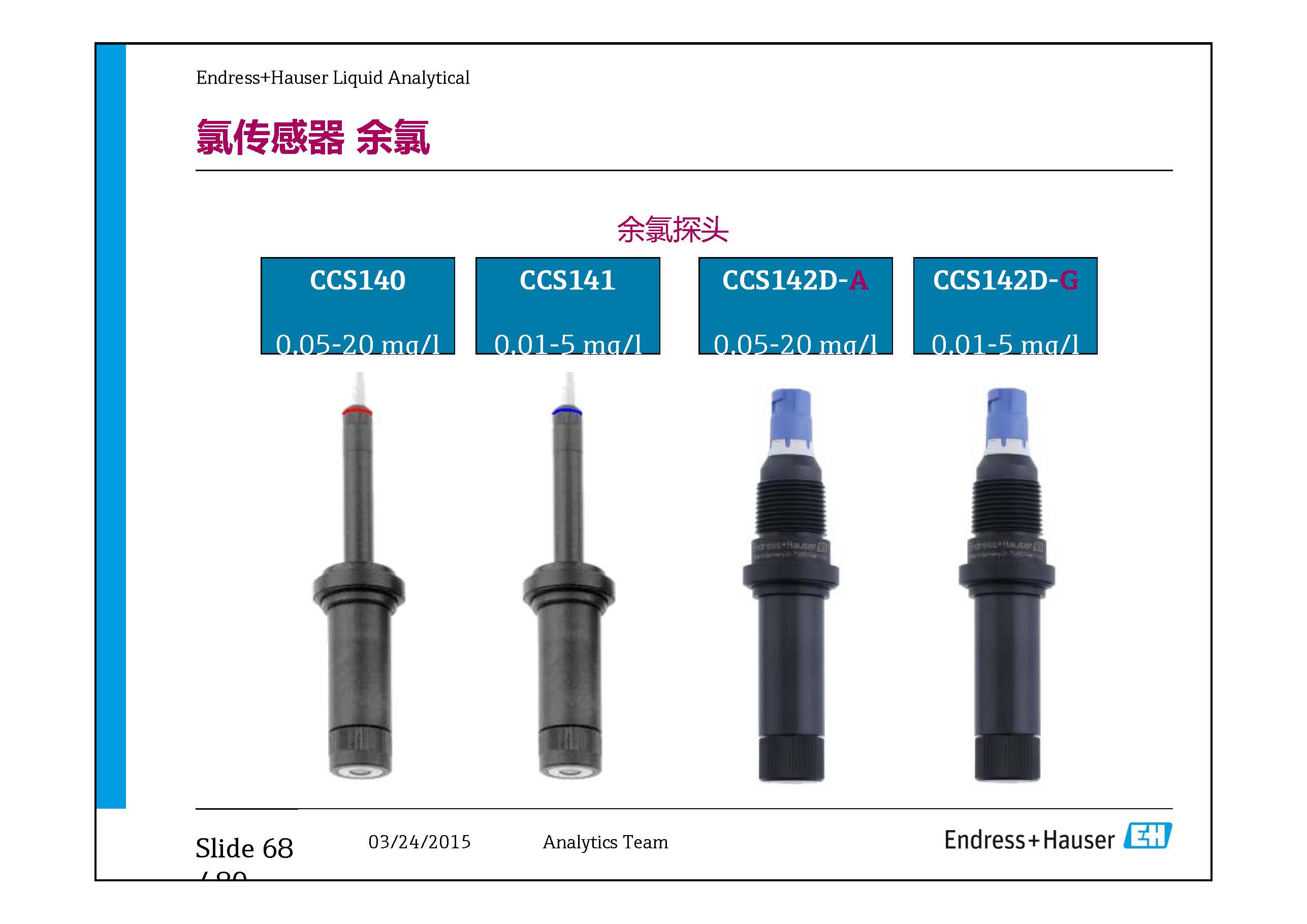

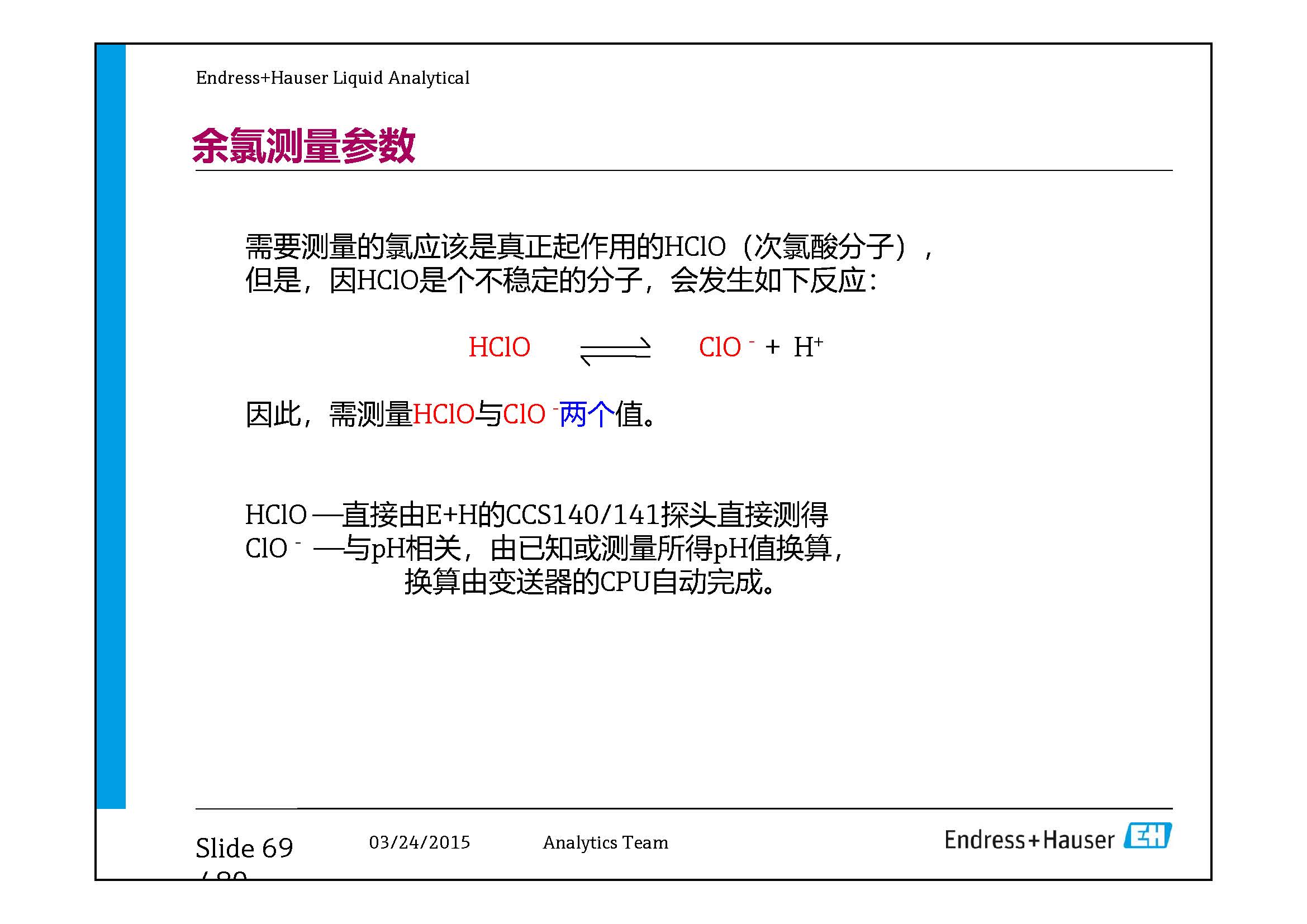

Residual Chlorine Measurement

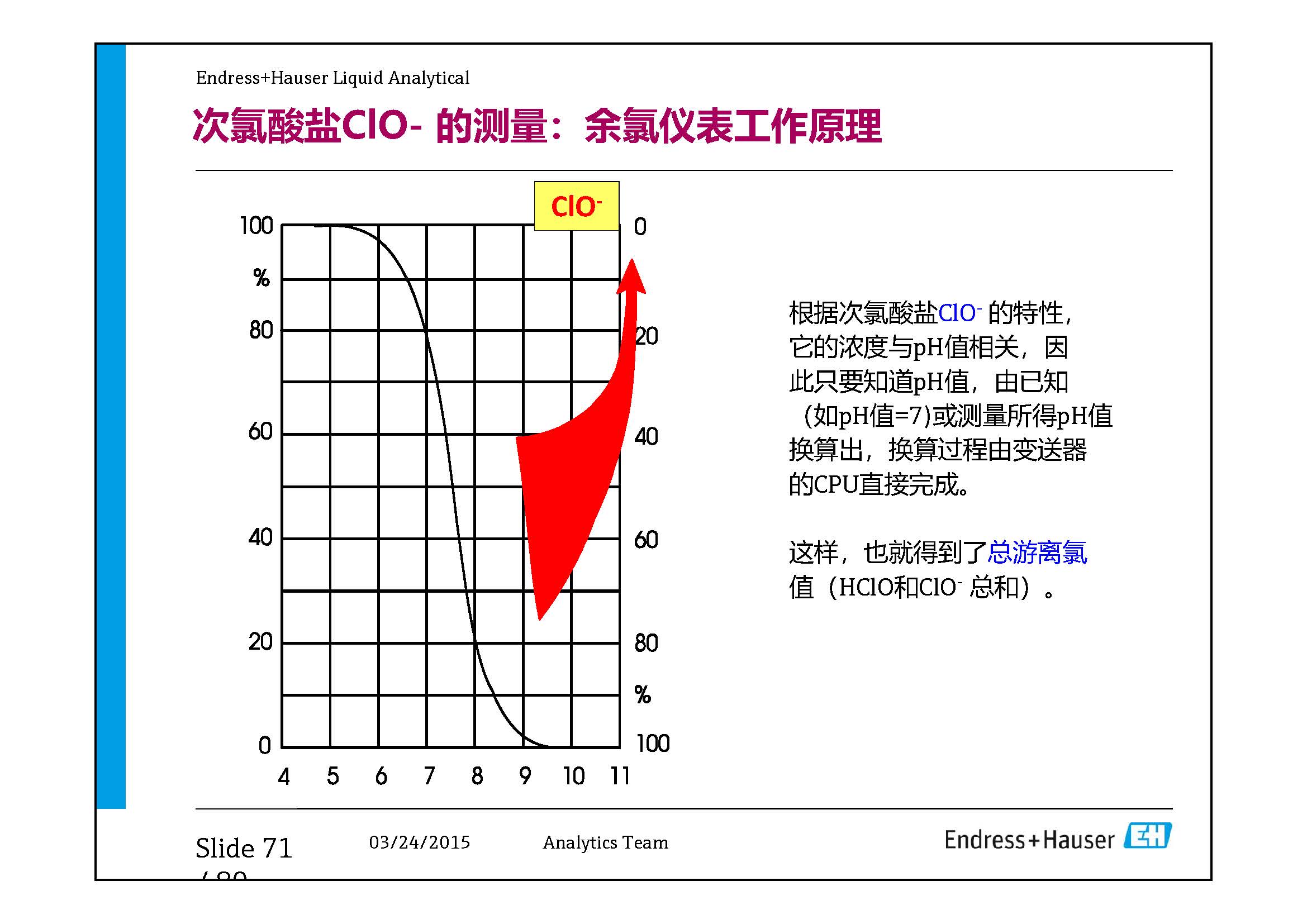

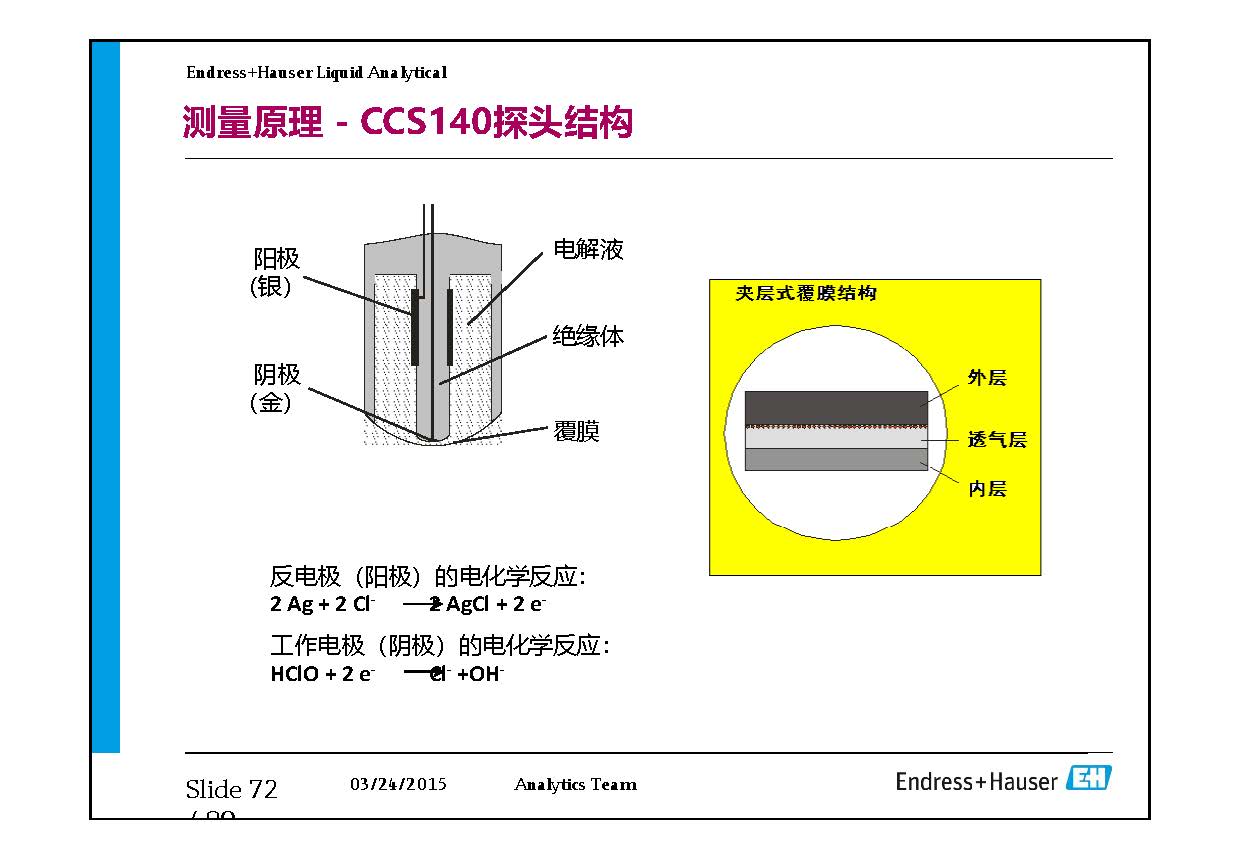

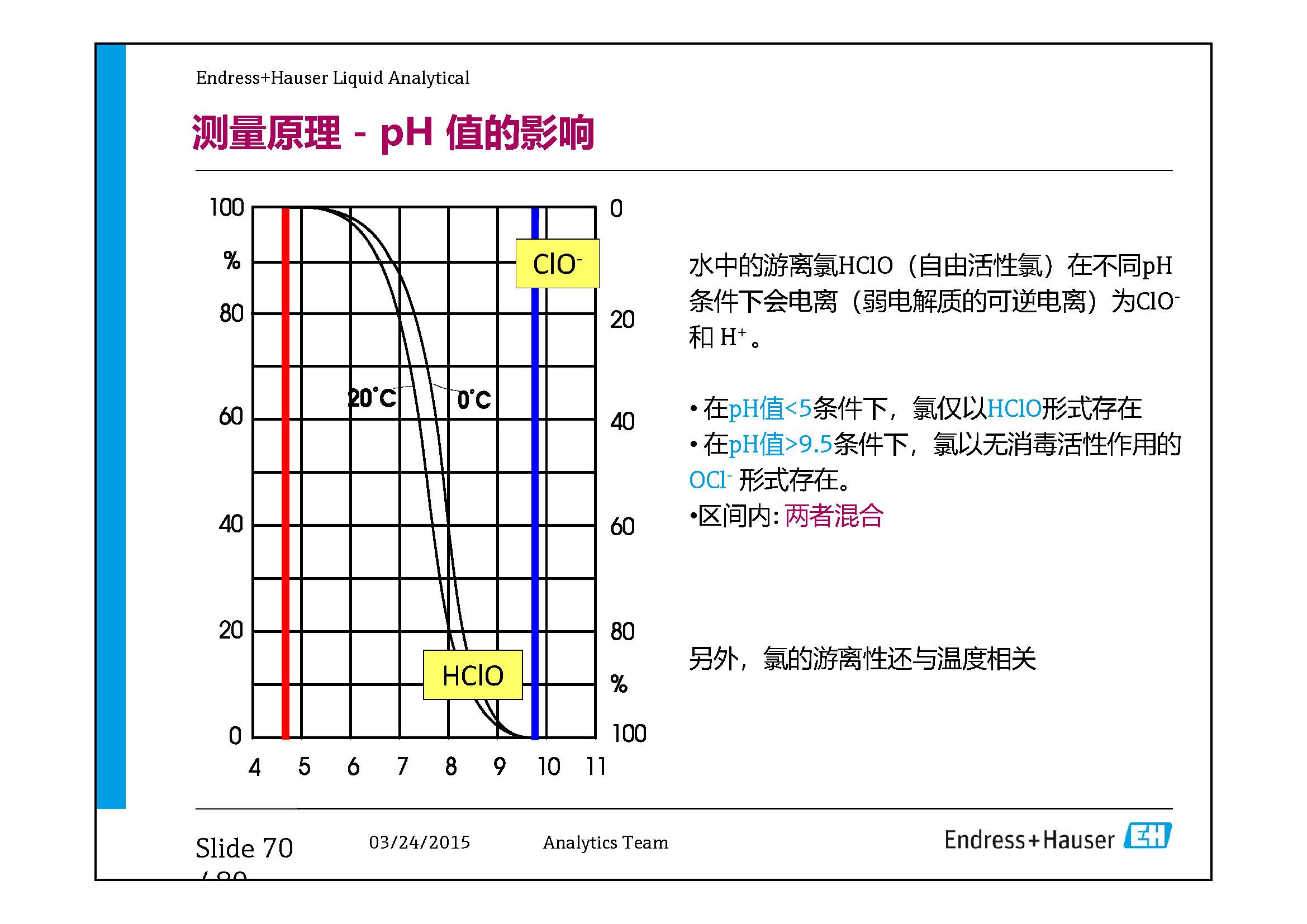

Residual chlorine is a key indicator for drinking water and swimming pool water disinfection. E+H uses amperometric or colorimetric methods to provide continuous online monitoring. Typical product: Chloromax CCS142D.
- Measuring range: 0~5 mg/L (extendable)
- Accuracy: ±2% or ±0.01 mg/L
- pH compensation: built-in

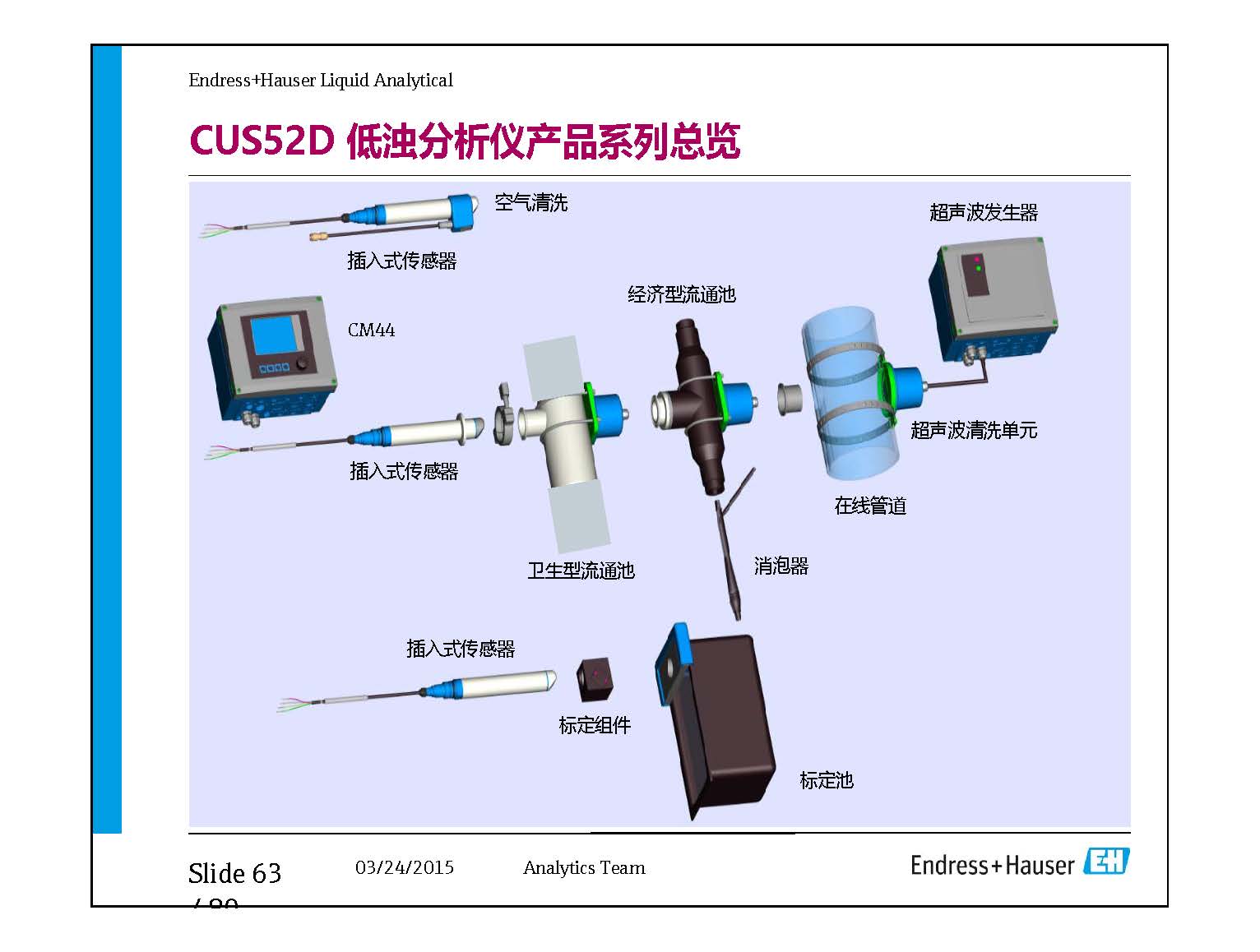

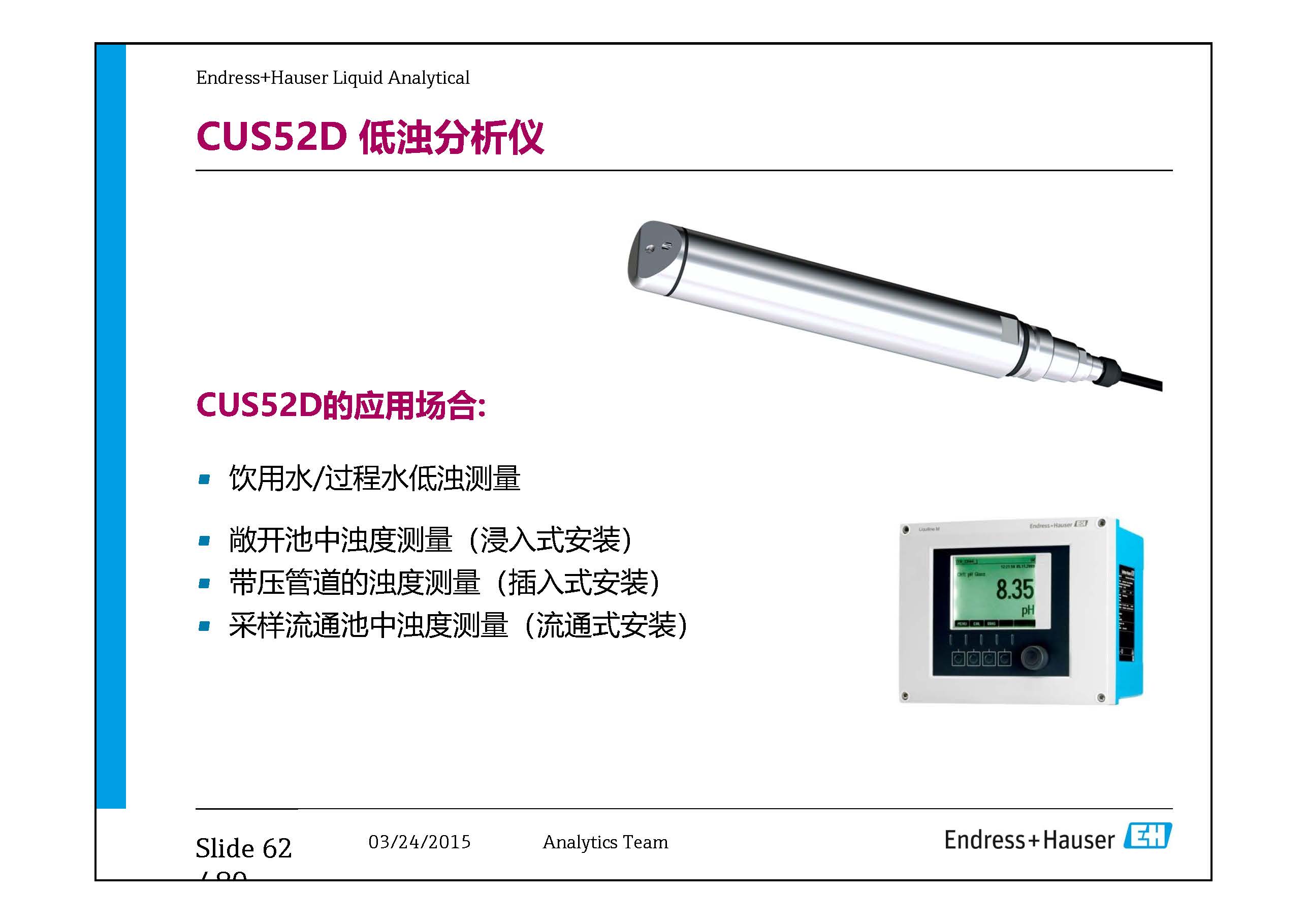

Turbidity Measurement

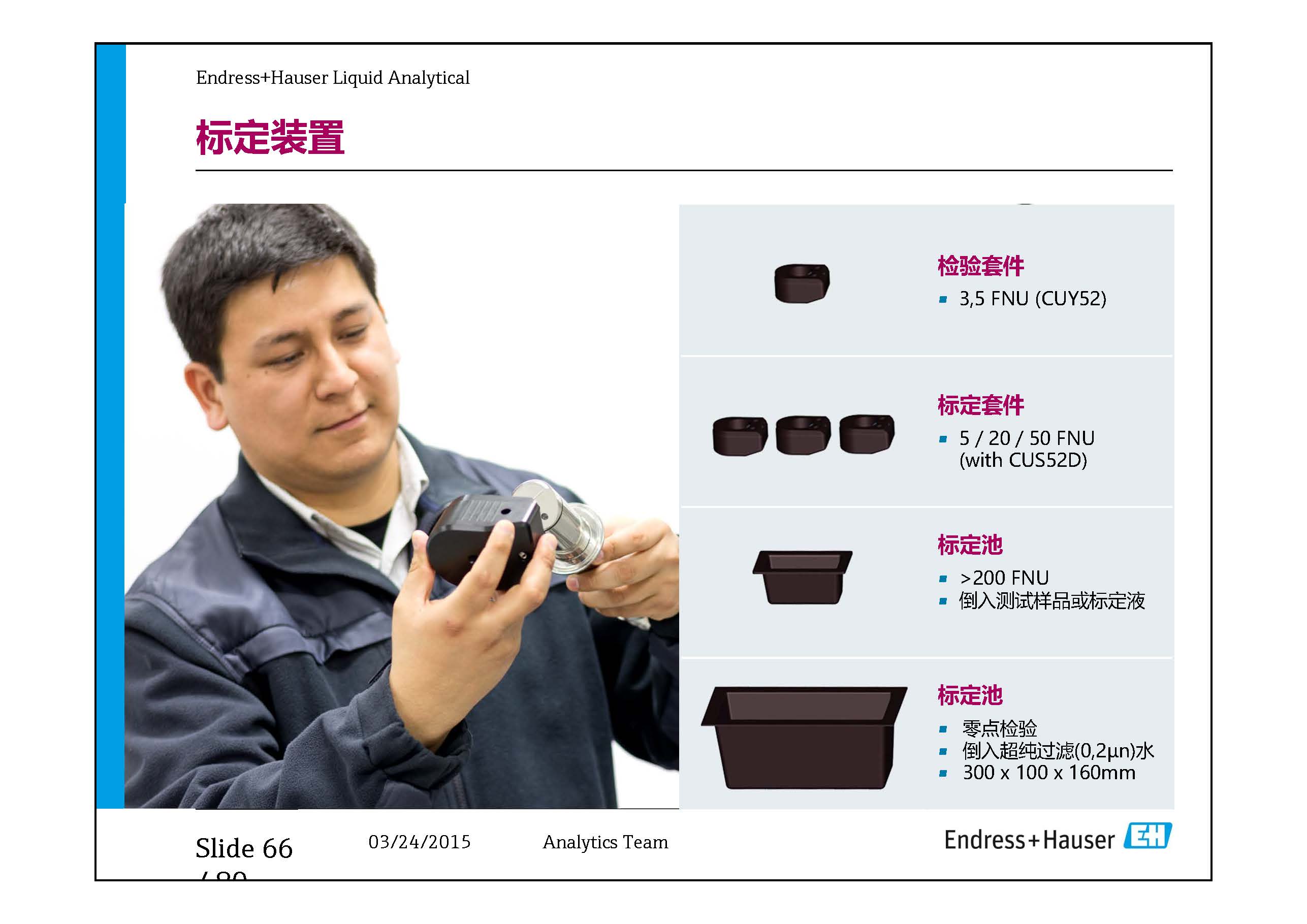

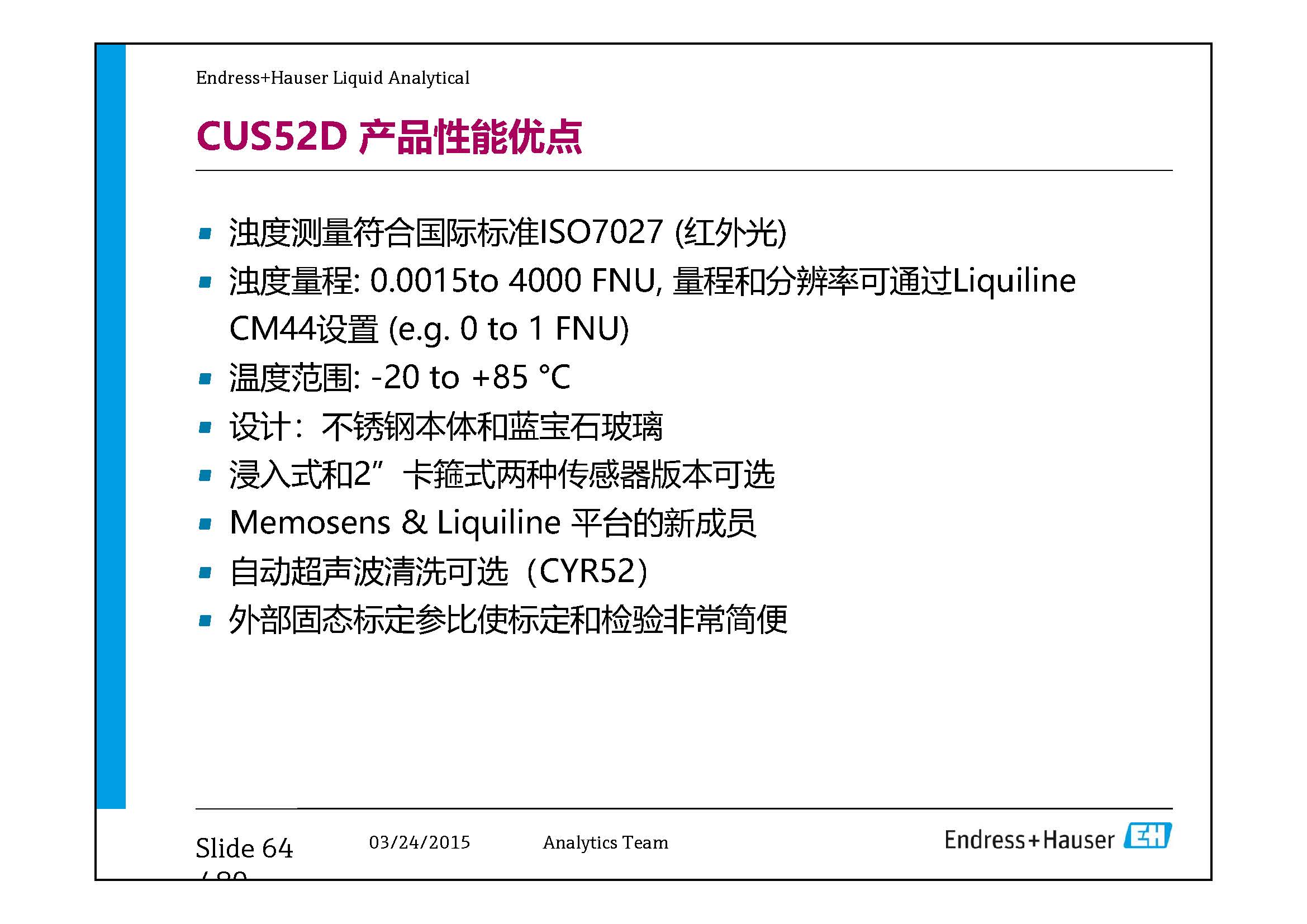

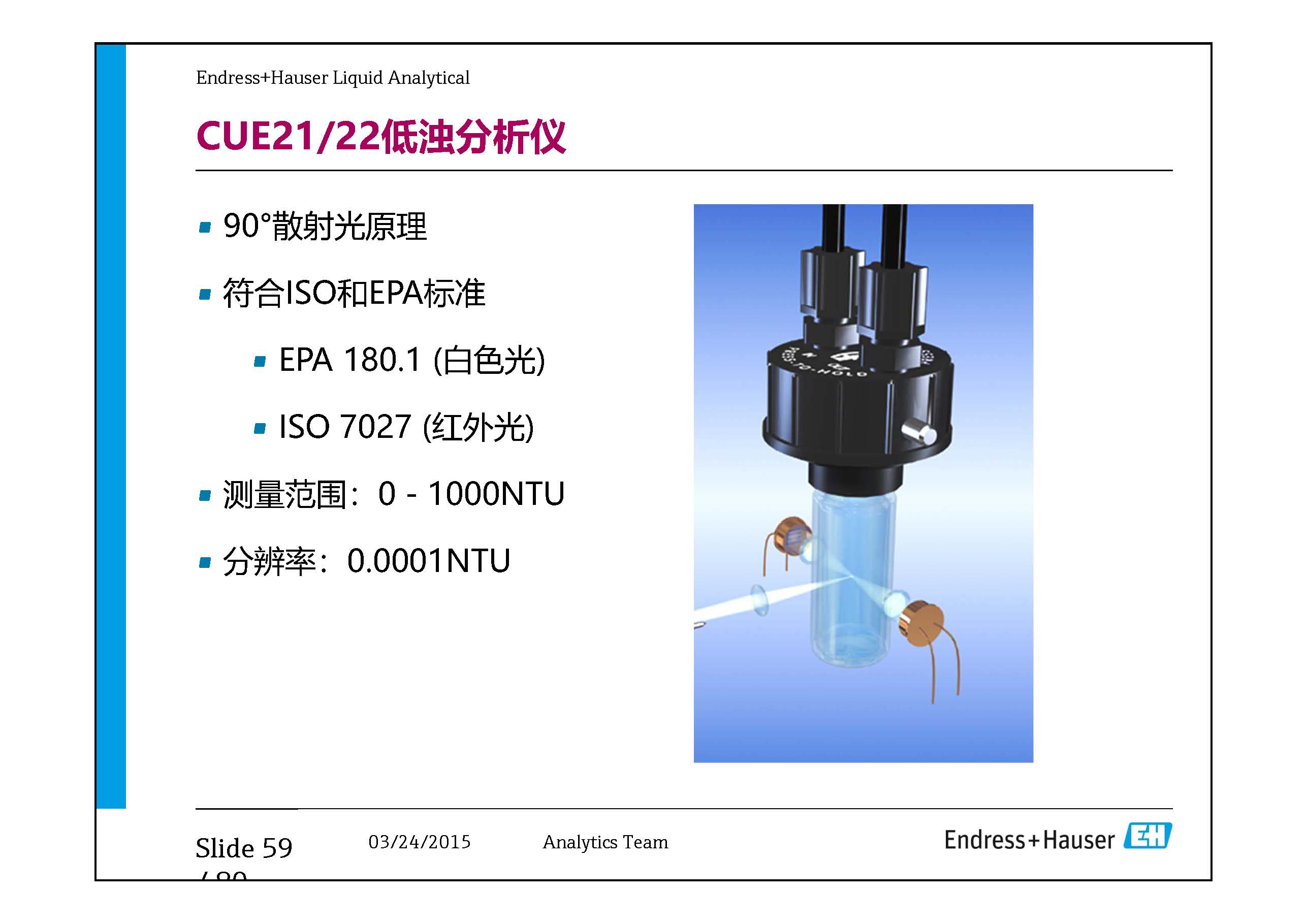

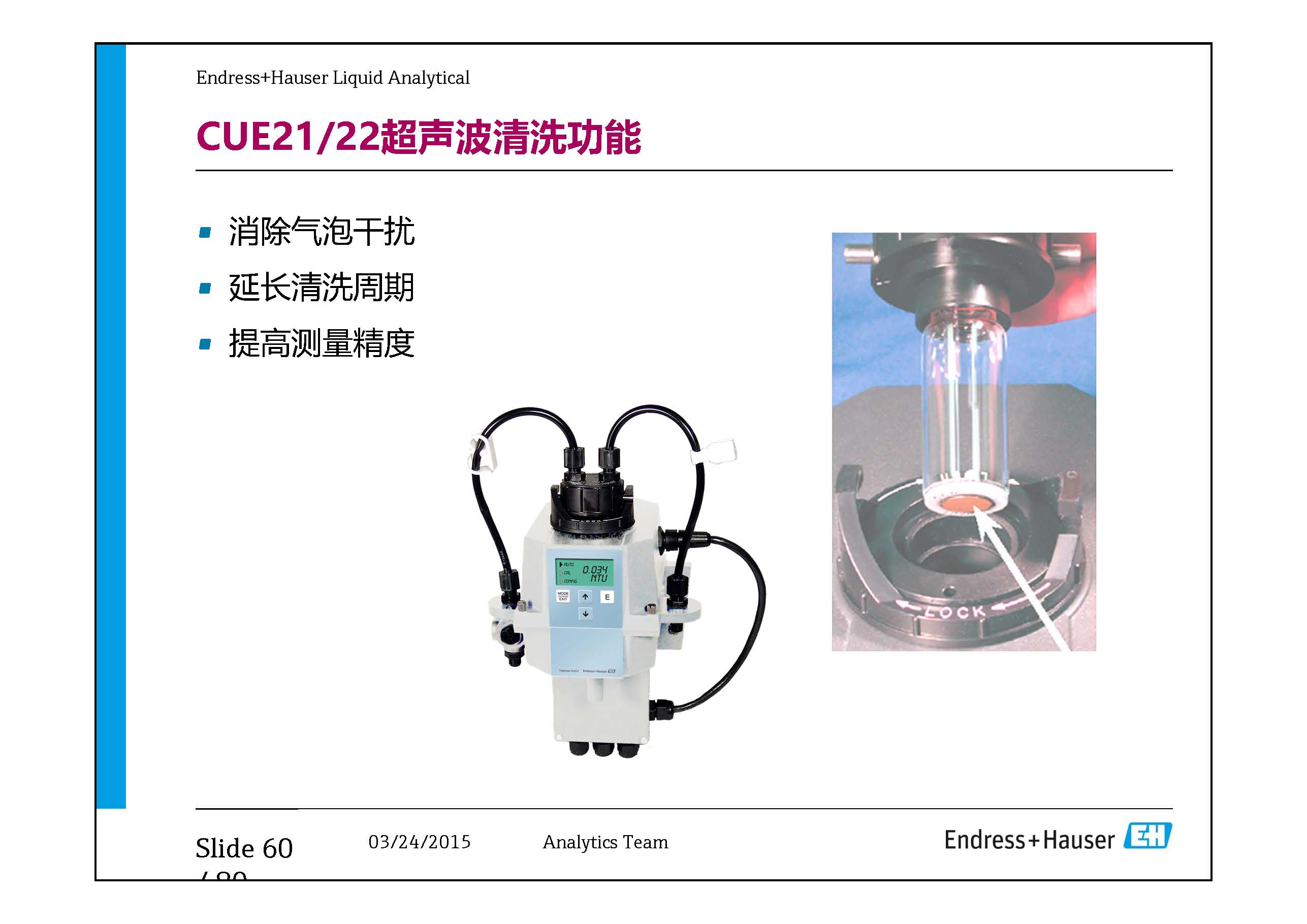

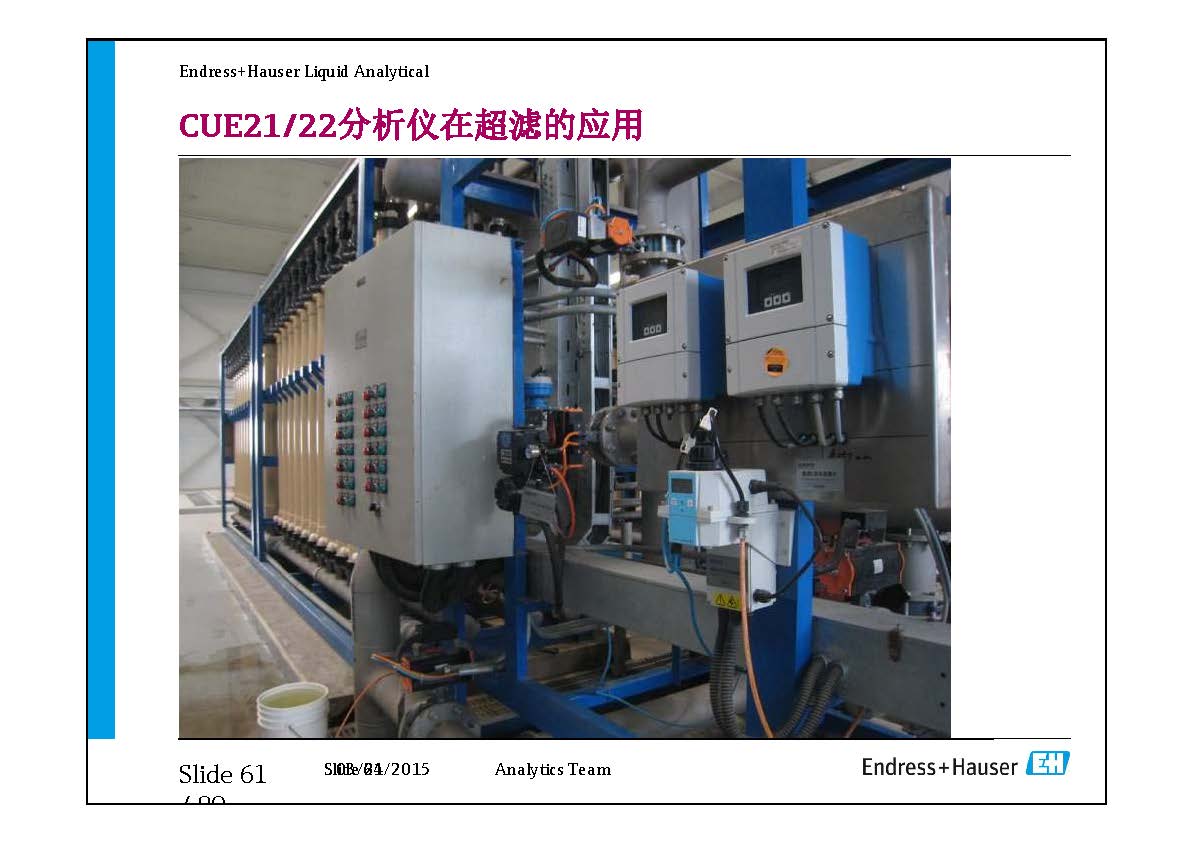

E+H turbidity meters use the 90° scattered light principle and comply with ISO 7027 standards. Suitable for drinking water, wastewater, and industrial processes.
- Measuring range: 0~4000 NTU
- Accuracy: ±2% or ±0.01 NTU
- Light source: LED infrared light
COD, Ammonia Nitrogen, TP, TN Measurement
COD Analyzer
E+H uses UV absorption method or potassium dichromate method to provide online COD monitoring. Typical product: CA80COD.
- Measuring range: 0~5000 mg/L
- Accuracy: ±5%
- Digestion time: <30 minutes

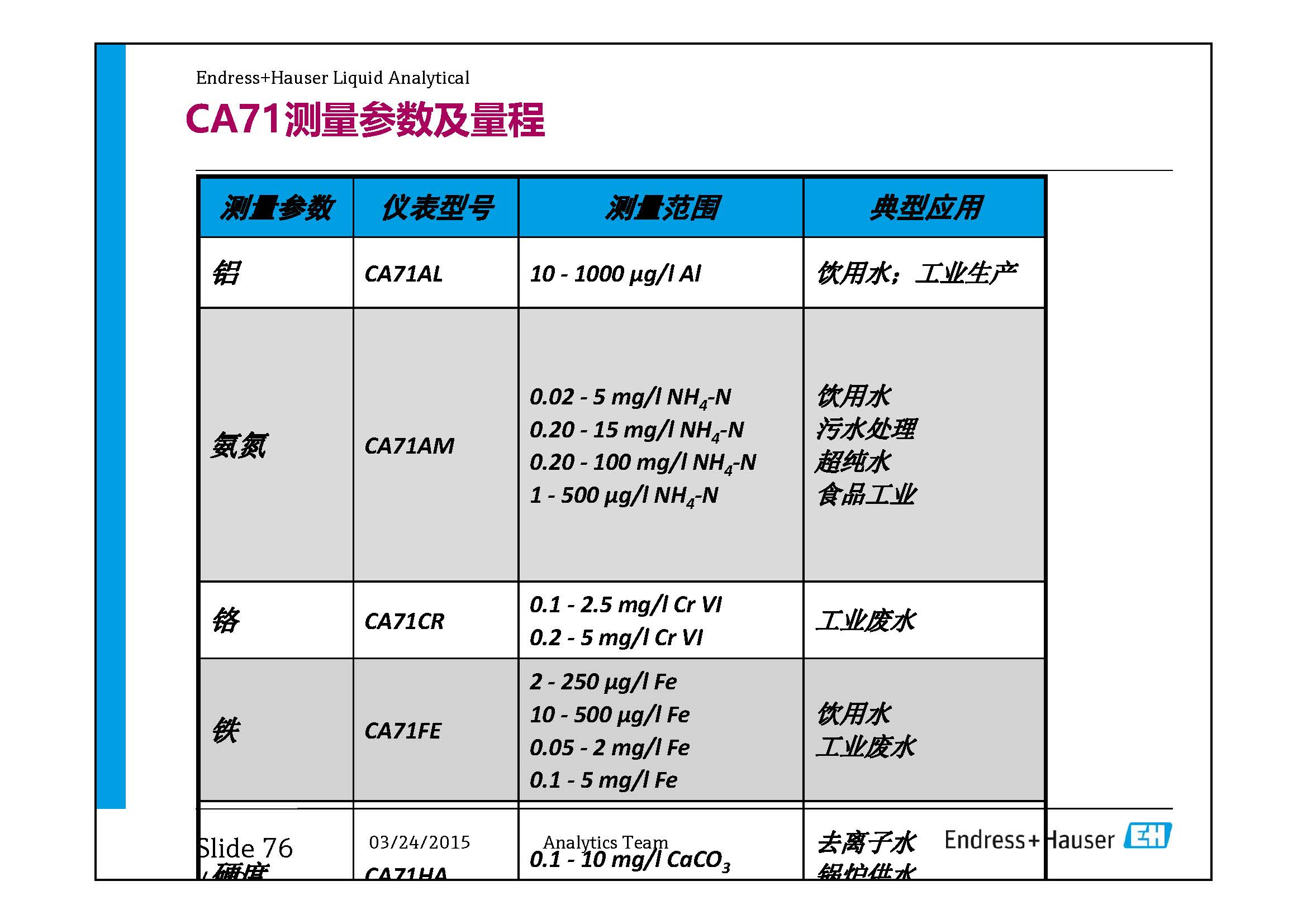

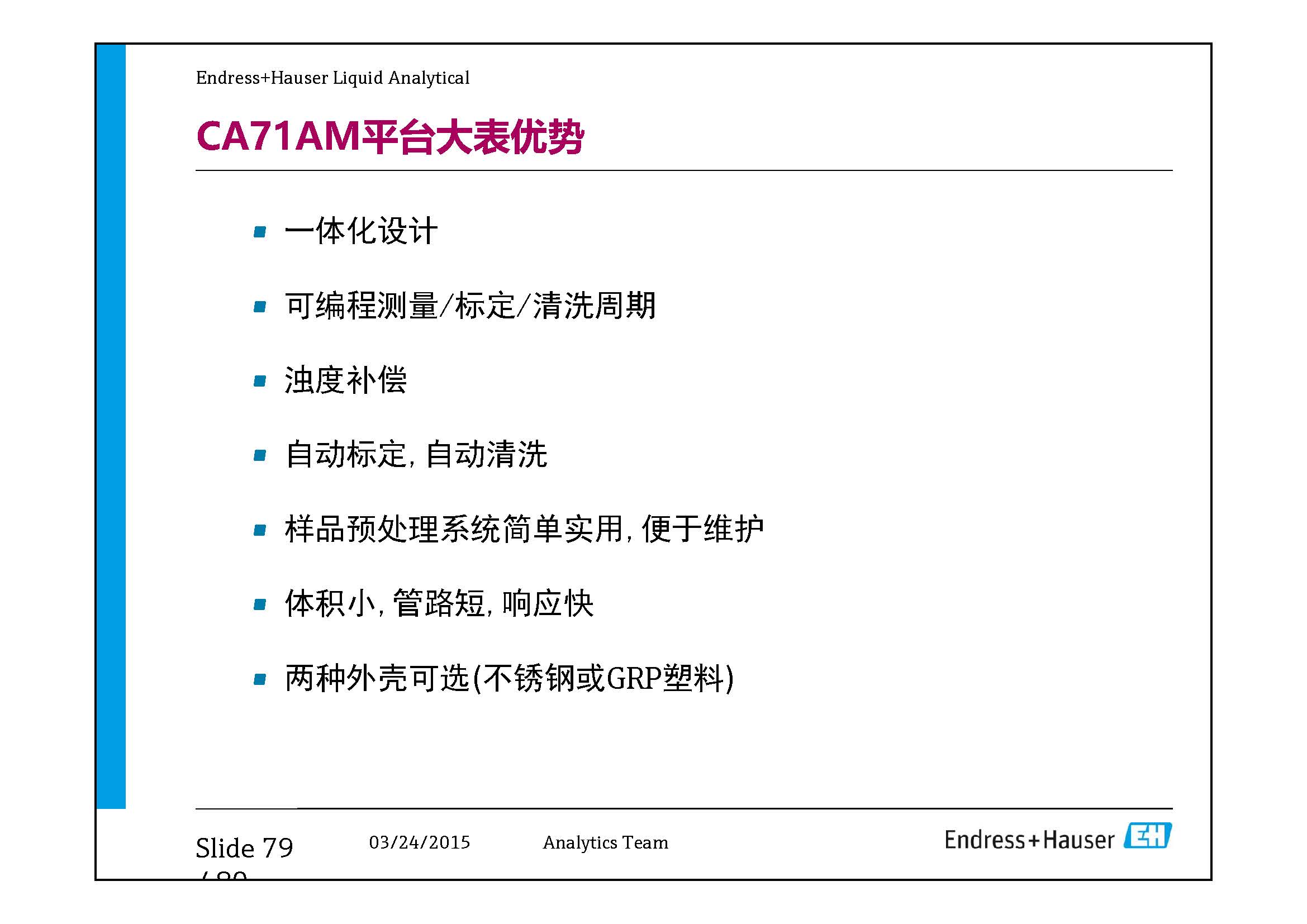

Ammonia Nitrogen Analyzer
Uses ion-selective electrode or colorimetric method. Typical product: CA80AM.
- Measuring range: 0~100 mg/L
- Accuracy: ±3%
- Response time: <5 minutes
Total Phosphorus (TP) and Total Nitrogen (TN) Analyzers
E+H provides online total phosphorus and total nitrogen analyzers using digestion-colorimetric method, compliant with environmental standards. Typical products: CA80TP, CA80TN.
- Measuring range: TP 0~10 mg/L; TN 0~100 mg/L
- Accuracy: ±5%
- Digestion time: <60 minutes
Selection and Procurement Recommendations
When selecting E+H water analysis products, consider the following factors:
- Measurement parameters: Clarify the water quality indicators to be monitored.
- Process conditions: Temperature, pressure, pH range, medium corrosiveness.
- Installation method: Immersion, flow-through, or inline.
- Communication protocol: 4-20 mA, HART, Profibus, Modbus, etc.
- Certification requirements: ATEX, FM, CSA, etc. explosion-proof certifications.

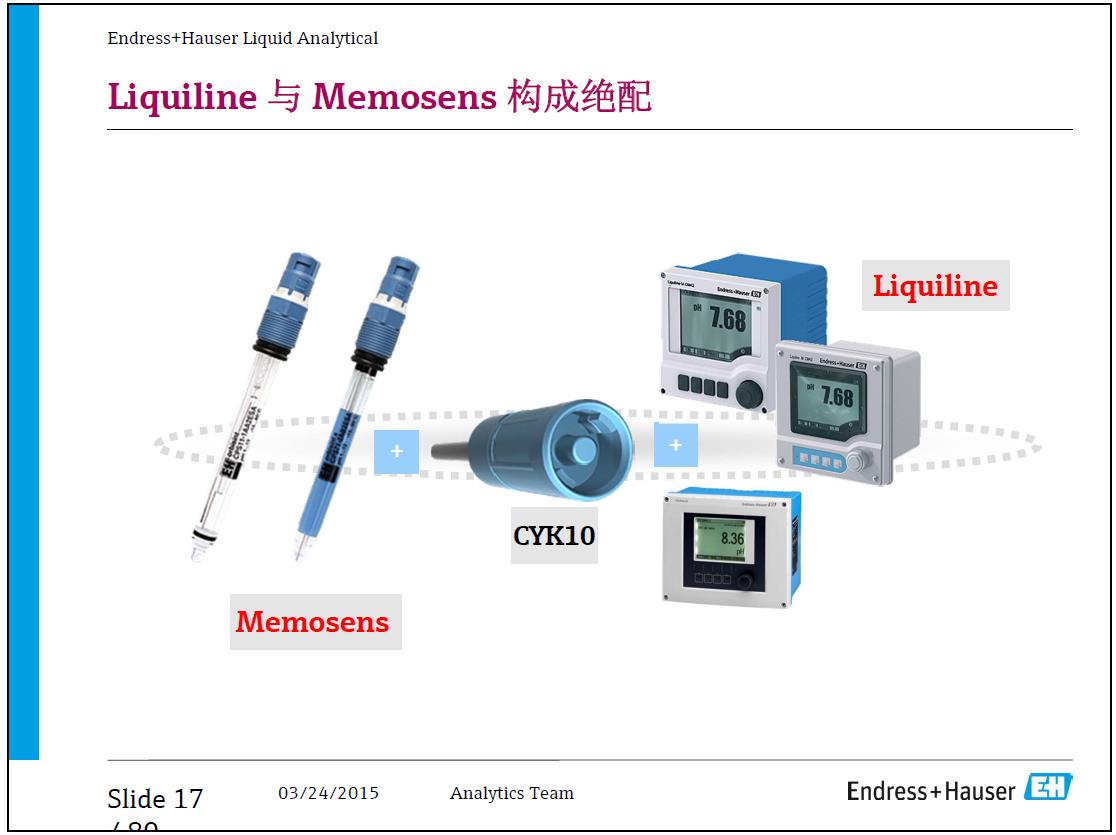

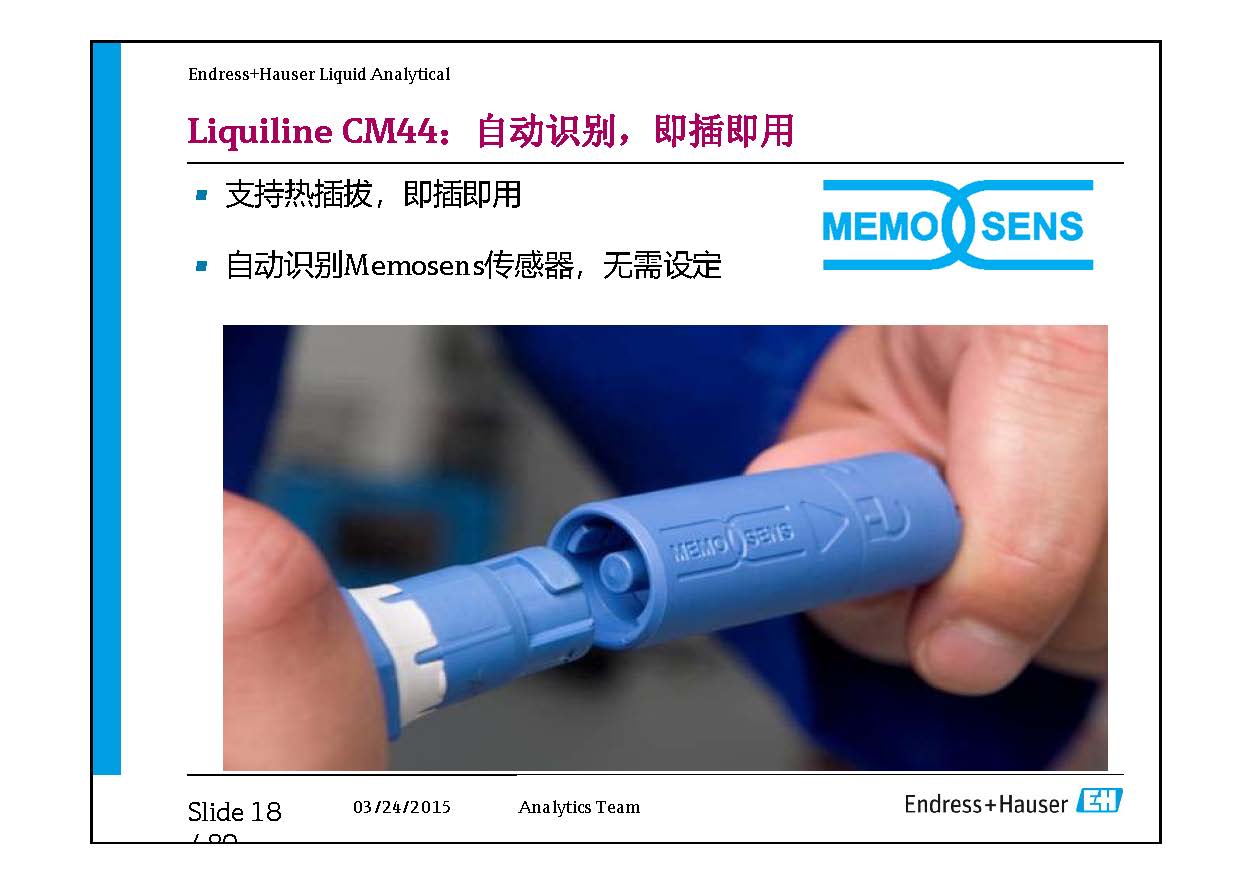

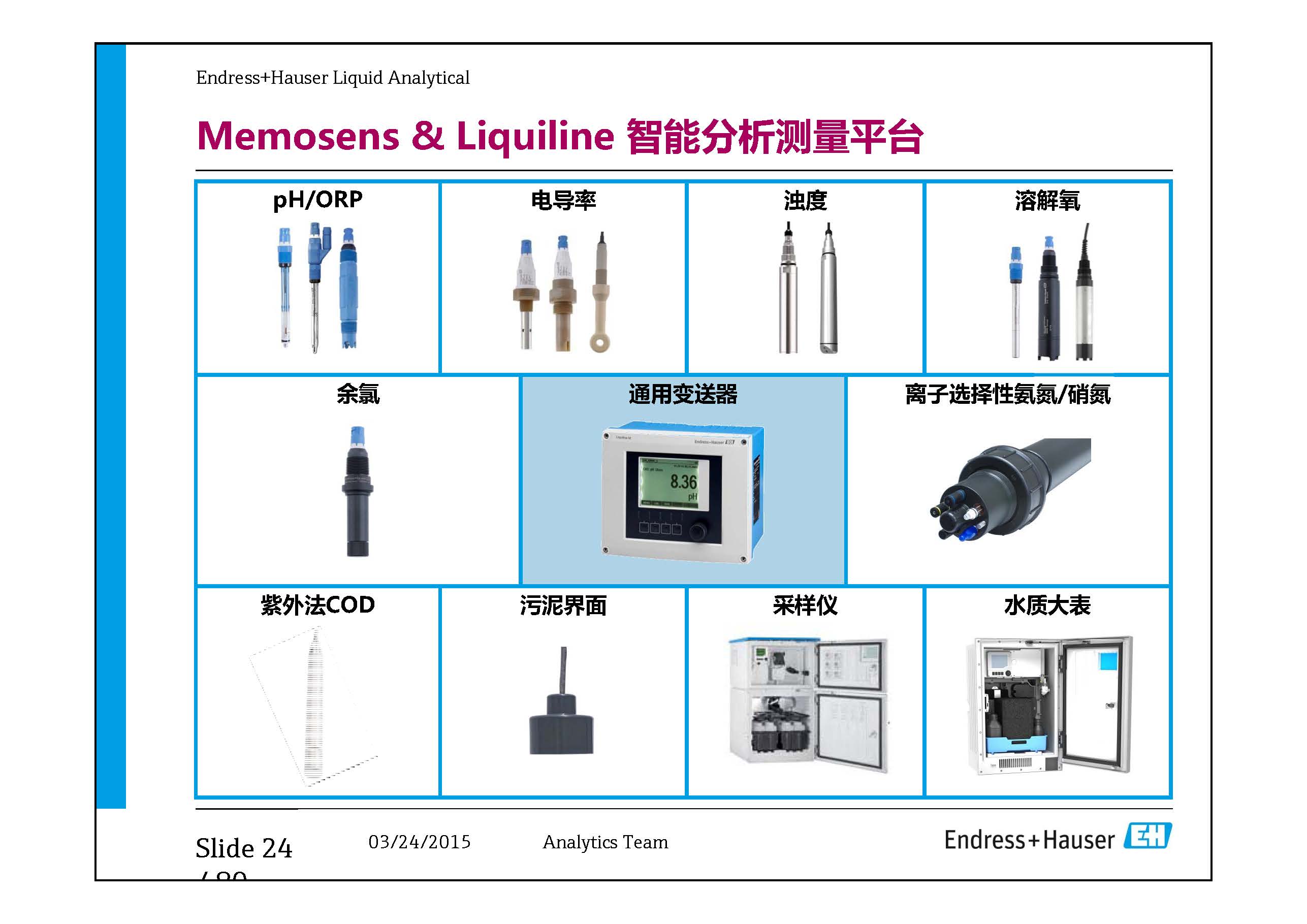

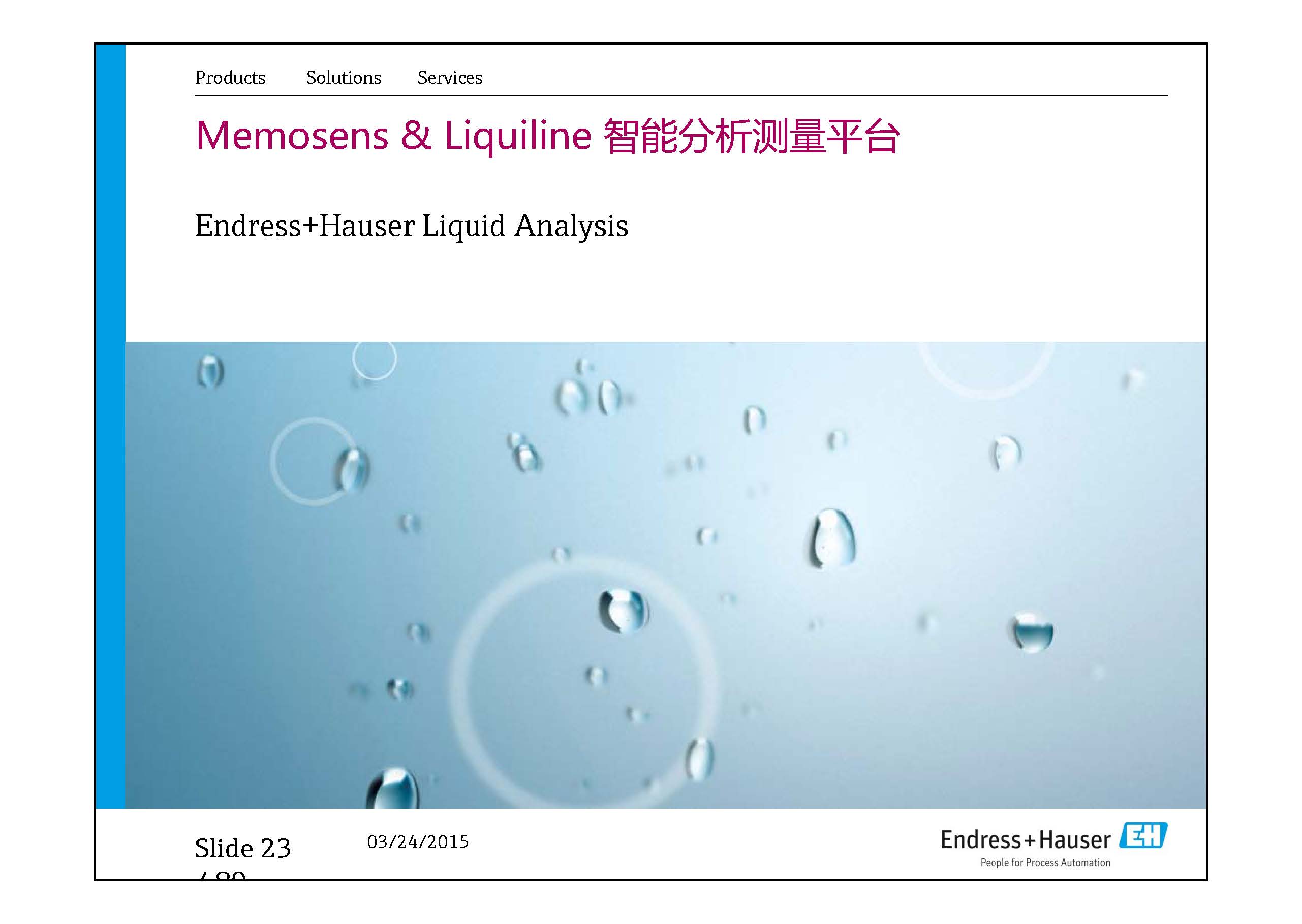

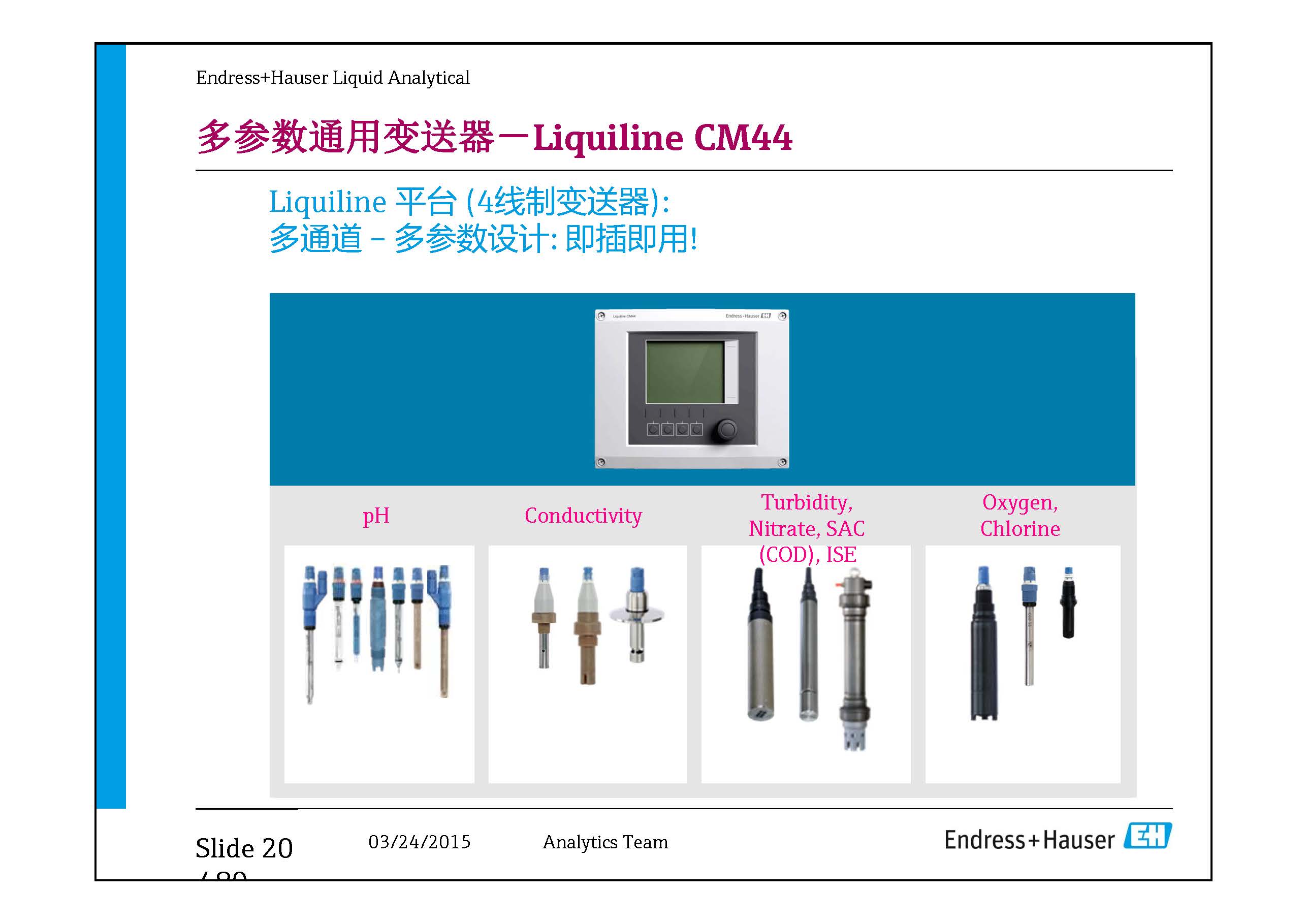

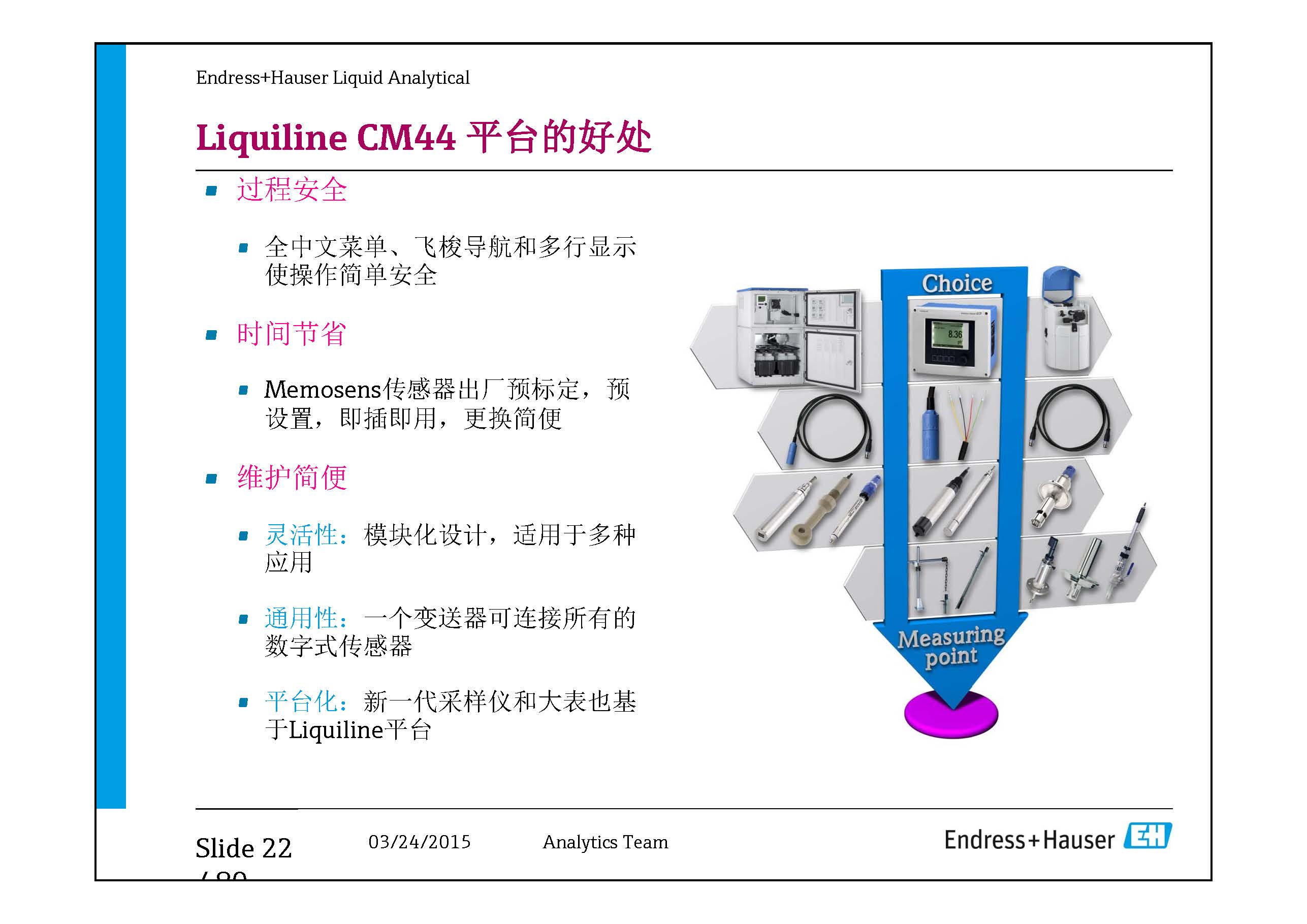

E+H provides complete Memosens and Smartec platforms, simplifying spare parts management and calibration processes. It is recommended to purchase through official authorized channels to ensure genuine products and technical support.
