Order Code：TM411-AA2AC1D3BB3B1A40A1X100A1B1A31AA1A1A1+C1

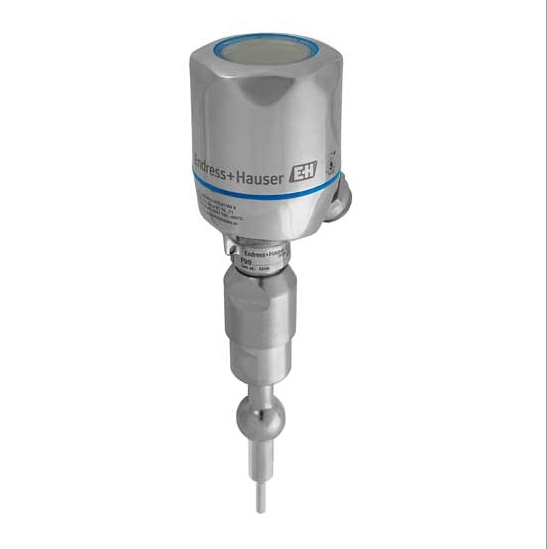

Name：iTHERM ModuLine TM411
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Thermowell | 2 | Detachable process connection |
| 030 | Material Wetted Parts | A | 316L |
| 040 | Process Connection Type | C1 | Clamp |
| 050 | Process Connection Size | D3 | Clamp>NA Connect ISO 2852 DN40-51 (2"), DIN 32676 DN50, form B, 3-A, EHEDG, ASME BPE |
| 060 | Thermowell External Diameter D1 | B | 6mm |
| 070 | Tip Shape; External Diam. D2; Length Re | B3 | Reduced; 4.3mm; 20mm |
| 080 | Surface Wetted Parts | B1 | Ra<=0.76um (D1=6mm) |
| 090 | Immersion Length U | A40 | 50 mm |
| 100 | Neck/Thermowell Connection | A1 | Extension tube with G3/8 cap nut |
| 110 | Neck Length E | X1 | ..... mm |
| 120 | Lagging Length T | 00 | Predefined (not selectable) |
| 130 | Sensor Type; Measuring Range | A1 | 1x Pt100 TF; -50...+400oC |
| 140 | Insert Design; Diam. d; Sheath Material | B1 | 3-wire MI-cable; 3mm; 316L |
| 150 | Accuracy acc. IEC60751 | A3 | Class A (TF, 3mm) |
| 160 | Electrical Connection | 1A | Terminal block |
| 170 | Terminal Head;Material;Protection Class | A1 | TA30A; Alu; IP66/68, NEMA Type 4X |
| 180 | Neck Connection Terminal Head | A1 | M24x1.5 female thread |
| 190 | Cable Entry Terminal Head | A1 | 1x M20x1.5 female thread |
| 520 | Cable Gland | C1 | 1x Polyamide; -40...+100oC; IP68 |
