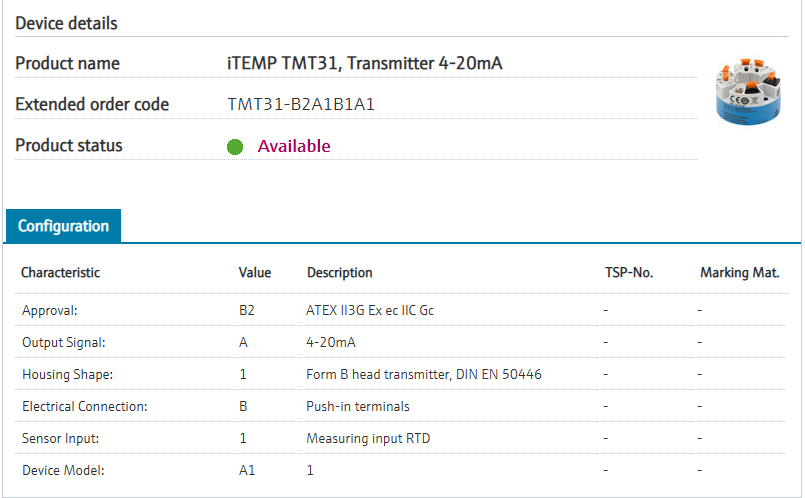

| TMT31-13Q6/0 | |
| (TMT31-B2A1B1A1) | |
| 温度变送器 TMT31 | |
| 2-wire temperature transmitter. Single sensor input. Application: RTD. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC, presetting failure current low. Mounting: head form B, DIN EN50446. | |
| Approval: | |
| B2 | ATEX II3G Ex ec IIC Gc |
| Output Signal: | |
| A | 4-20mA |
| Housing Shape: | |
| 1 | Form B head transmitter, DIN EN 50446 |
| Electrical Connection: | |
| B | Push-in terminals |
| Sensor Input: | |
| 1 | Measuring input RTD |
| Device Model: | |
| A1 | 1 |
